tieCAR.net Company

CANtieCAR v5.x

::.

Hardware: - Powerful CortexM4-core MCU
- Wi-Fi chipset ESP8266EX
- Bluetooth v2.0 + EDR + BLE
- True USB-ready device: CDC, FT232B/R-emulation, FT2232C-emulation, MSD over SD Card
- SD Card: internal Flash storage with USB-MSD up to 32GB
- 3 independent ISO9141/ISO14239 K-Lines (ISO-Lines): OBDII-pins 7,8,15
- 2 multi-functional lines (MFLs): CAN - one and two-wires, K Lines, J1850, DC-DC-out (5-30V)/1W etc.
- 3 CAN channels at the same time: Dual Wire CAN, Fault-tolerant CAN, Single wire CAN
- SAE J1850 Normal and High Speed support: J1850PWM 41.6 Kbps and 83.3 Kbps; J1850VPW 10.4 Kbps and 41.6 Kbps
- built-in analog switches multiplexer for OBDII-pins 1,2,3,6,8,13 and 8,9,10,11,12,14 with cross-link for the MFLs
- built-in hardware UART multiplexer
- built-in switchable CAN-bus differential terminator 120 Ohm
- 9 Leds: 6 - Bus Activity, 1 bi-color - USB/Bluetooth/Wi-Fi TX Activity + Status, 1 bi-color - Power state: USB and car + USB Activity, 1 bi-color - Bluetooth/Wi-Fi Status/Activity
- 2 DC-DC: 5V/500mA and programmable (5-35V)/1W
- 8 ADC Channels: Power ISO-Lines, Power MFL, High MFL, Low MFL, OBD:1, OBD:8, OBD:9, OBD:16
- Systems: Up to 35V
- Speed: ISO-Lines up to 1Mbit/s; CAN up to 1Mbit/s
- Special OBDII-connector design
- Security Firmware updates
- ALL protections with Resetable fuses
PassThru SAE J2534-1/2 Support: - J1850VPW, J1850VPW_PS
- J1850PWM, J1850PWM_PS
- ISO9141, ISO9141_PS
- ISO14230, ISO14230_PS
- CAN, CAN_PS
- ISO15765, ISO15765_PS
- SW_CAN_PS, SW_ISO15765_PS
- FT_CAN_PS, FT_ISO15765_PS
- UART_ECHO_BYTE_PS
- HONDA_DIAGH_PS
- UBP_PS (UBP - Ford UART Based Protocol)
Emulated well-known adapters: - ECU-Emulator
- PassThru SAE J2534-1/2
- PassThru SAE J2534-1/2 - BMW up to 2008
- PassThru SAE J2534-1/2 - NISSAN Consult-III plus
- MultiECUScan
- ELM327 v1.4+
- ELM327 v1.4+ (ScanTool.net)
- USB-Serial (4/5:GND, 6:CTS, 7:RXD, 8:DTR/DSR, 14:RTS, 15:TXD)
- USB-Serial Inverted (4/5:GND, 6:~CTS, 7:~RXD, 8:~DTR/~DSR, 14:~RTS, 15:~TXD)
- K-Line + USB-Serial LPG/CNG (4/5:GND, 12:RX/L, 13:TX/K, 7:K)
- KL-Line (7:K, 15:L)
- 2K-Line (7:K, 15:K2)
- KKL-Line (7:K, 15:L/K2)
- 3K-Line (7:K, 15:K2, 8:K3)
- OPEL 4K-Line (7:K, 8:K3, 3:K4, 12:K5)
- Multiplexed K-Line to ALL OBD-pins
- VAGCOM v409-1 (KKL-Design)
- RS485 Duplex (12:A, 13:B)
- RS485 Half-Duplex (12:A, 13:B)
- Carsoft BMW 6.5/7.3
- Carsoft MB 7.4
- Carsoft MB 7.4 - OBDII
- NISSAN Consult I + Sync (10:TX, 2:RX, 7:SYNC)
- NISSAN Consult I - OBDII (12:TX, 13:RX)
- DIESEL-kit v1.0
- DIESEL-kit v2.0
- P.A.Soft BMW Scanner v1.2.5
- P.A.Soft BMW Scanner v1.3.6
- P.A.Soft BMW Scanner v1.4.0 Demo
- P.A.Soft BMW Scanner v1.4.x
- BMW EDIABAS: STD:OBD
- BMW EDIABAS: ADS
- BMW EDIABAS: D-CAN Combo (STD:OBD K + D-CAN)
- BMW EDIABAS: D-CAN Fast (STD:OBD D-CAN)
- BMW EDIABAS: D-CAN Fxx (STD:OBD D-CAN for F-series)
- BMW EDIABAS: JBE PT-CAN (STD:OBD + JBE CAN 500k)
- BMW EDIABAS: JBE K-CAN (STD:OBD + JBE CAN 100k)
- BMW EDIABAS: FEM x-CAN 6/14 (STD:OBD + FEM CAN 500k)
- CMD EDC16 OBDII Flasher v1255 - K-Line
- CMD MPC5xx BDM Programmer v1255 (4/5:GND-6, 6:RST-1, 7:DI-7, 8:SCK-5, 14:IGN-2, 15:DO-8, 16:PWR-9)
- Galletto v1050/1080 EOBDII Flasher
- Galletto v1245 EOBDII Flasher
- Galletto v1250 EOBDII Flasher
- Galletto v1260 EOBDII Flasher
- VAG K+CAN Commander v1.4/v2.5/v3.6
- Lawicel CAN232 v3 (6:High, 14:Low)
- Lawicel CANUSB v1 (6:High, 14:Low)
- PonyProg2000 (4/5:GND-10, 6:IN#-6, 7:OUT#-5, 8:SCLK#-4, 14:VCC/RST-1/3, 15:RST#-2)
- EDiTH Eberspacher ISO Adapter
- OpenPort v1
- OpenPort v1.2
- OpenPort v1.3 Universal (11:Vpp/Boot)
- USB-Bluetooth Gate - HC-06
- USB-WiFi Gate - ESP8266EX
- USB-WIRELESS Gate - SYSTEM.INI
Status: Production (available from stock)
Support: Full support

[ view 1 | view 2 |

[ order | support | top ]

CANtieCAR v4.x

::.

Hardware: - Powerful ARM-core MCU
- Wi-Fi chipset ESP8266EX
- Bluetooth v2.0 + EDR
- True USB-ready device: CDC, FT232B/R-emulation, FT2232C-emulation, MSD over SD Card
- SD Card: internal Flash storage with USB-MSD up to 32GB
- 3 independent ISO9141/ISO14239 K-Lines (ISO-Lines): OBDII-pins 7,8,15
- 2 multi-functional lines (MFLs): CAN - one and two-wires, K Lines, J1850, DC-DC-out (5-30V)/1W etc.
- 3 CAN channels at the same time: Dual Wire CAN, Fault-tolerant CAN, Single wire CAN
- SAE J1850 Normal and High Speed support: J1850PWM 41.6 Kbps and 83.3 Kbps; J1850VPW 10.4 Kbps and 41.6 Kbps
- built-in analog switches multiplexer for OBDII-pins 1,2,3,6,8,13 and 8,9,10,11,12,14 with cross-link for the MFLs
- built-in hardware UART multiplexer
- built-in switchable CAN-bus differential terminator 120 Ohm
- 9 Leds: 6 - Bus Activity, 1 bi-color - USB/Bluetooth/Wi-Fi TX Activity + Status, 1 bi-color - Power state: USB and car + USB Activity, 1 bi-color - Bluetooth/Wi-Fi Status/Activity
- 2 DC-DC: 5V/500mA and programmable (5-35V)/1W
- 8 ADC Channels: Power ISO-Lines, Power MFL, High MFL, Low MFL, OBD:1, OBD:8, OBD:9, OBD:16
- Systems: Up to 35V
- Speed: ISO-Lines up to 1Mbit/s; CAN up to 1Mbit/s
- Special OBDII-connector design
- Security Firmware updates
- ALL protections with Resetable fuses
PassThru SAE J2534-1/2 Support: - J1850VPW, J1850VPW_PS
- J1850PWM, J1850PWM_PS
- ISO9141, ISO9141_PS
- ISO14230, ISO14230_PS
- CAN, CAN_PS
- ISO15765, ISO15765_PS
- SW_CAN_PS, SW_ISO15765_PS
- FT_CAN_PS, FT_ISO15765_PS
- UART_ECHO_BYTE_PS
- HONDA_DIAGH_PS
- UBP_PS (UBP - Ford UART Based Protocol)
Emulated well-known adapters: - ECU-Emulator
- PassThru SAE J2534-1/2
- PassThru SAE J2534-1/2 - BMW up to 2008
- PassThru SAE J2534-1/2 - NISSAN Consult-III plus
- MultiECUScan
- ELM327 v1.4+
- ELM327 v1.4+ (ScanTool.net)
- USB-Serial (4/5:GND, 6:CTS, 7:RXD, 8:DTR/DSR, 14:RTS, 15:TXD)
- USB-Serial Inverted (4/5:GND, 6:~CTS, 7:~RXD, 8:~DTR/~DSR, 14:~RTS, 15:~TXD)
- K-Line + USB-Serial LPG/CNG (4/5:GND, 12:RX/L, 13:TX/K, 7:K)
- KL-Line (7:K, 15:L)
- 2K-Line (7:K, 15:K2)
- KKL-Line (7:K, 15:L/K2)
- 3K-Line (7:K, 15:K2, 8:K3)
- OPEL 4K-Line (7:K, 8:K3, 3:K4, 12:K5)
- Multiplexed K-Line to ALL OBD-pins
- VAGCOM v409-1 (KKL-Design)
- RS485 Duplex (12:A, 13:B)
- RS485 Half-Duplex (12:A, 13:B)
- Carsoft BMW 6.5/7.3
- Carsoft MB 7.4
- Carsoft MB 7.4 - OBDII
- NISSAN Consult I + Sync (10:TX, 2:RX, 7:SYNC)
- NISSAN Consult I - OBDII (12:TX, 13:RX)
- DIESEL-kit v1.0
- DIESEL-kit v2.0
- P.A.Soft BMW Scanner v1.2.5
- P.A.Soft BMW Scanner v1.3.6
- P.A.Soft BMW Scanner v1.4.0 Demo
- P.A.Soft BMW Scanner v1.4.x
- BMW EDIABAS: STD:OBD
- BMW EDIABAS: ADS
- BMW EDIABAS: D-CAN Combo (STD:OBD K + D-CAN)
- BMW EDIABAS: D-CAN Fast (STD:OBD D-CAN)
- BMW EDIABAS: D-CAN Fxx (STD:OBD D-CAN for F-series)
- BMW EDIABAS: JBE PT-CAN (STD:OBD + JBE CAN 500k)
- BMW EDIABAS: JBE K-CAN (STD:OBD + JBE CAN 100k)
- BMW EDIABAS: FEM x-CAN 6/14 (STD:OBD + FEM CAN 500k)
- CMD EDC16 OBDII Flasher v1255 - K-Line
- CMD MPC5xx BDM Programmer v1255 (4/5:GND-6, 6:RST-1, 7:DI-7, 8:SCK-5, 14:IGN-2, 15:DO-8, 16:PWR-9)
- Galletto v1050/1080 EOBDII Flasher
- Galletto v1245 EOBDII Flasher
- Galletto v1250 EOBDII Flasher
- Galletto v1260 EOBDII Flasher
- VAG K+CAN Commander v1.4/v2.5/v3.6
- Lawicel CAN232 v3 (6:High, 14:Low)
- Lawicel CANUSB v1 (6:High, 14:Low)
- PonyProg2000 (4/5:GND-10, 6:IN#-6, 7:OUT#-5, 8:SCLK#-4, 14:VCC/RST-1/3, 15:RST#-2)
- EDiTH Eberspacher ISO Adapter
- OpenPort v1
- OpenPort v1.2
- OpenPort v1.3 Universal (11:Vpp/Boot)
- USB-Bluetooth Gate - HC-06
- USB-WiFi Gate - ESP8266EX
- USB-WIRELESS Gate - SYSTEM.INI
Status: Discontinued (available from stock)
Support: Full support

[ order | support | top ]

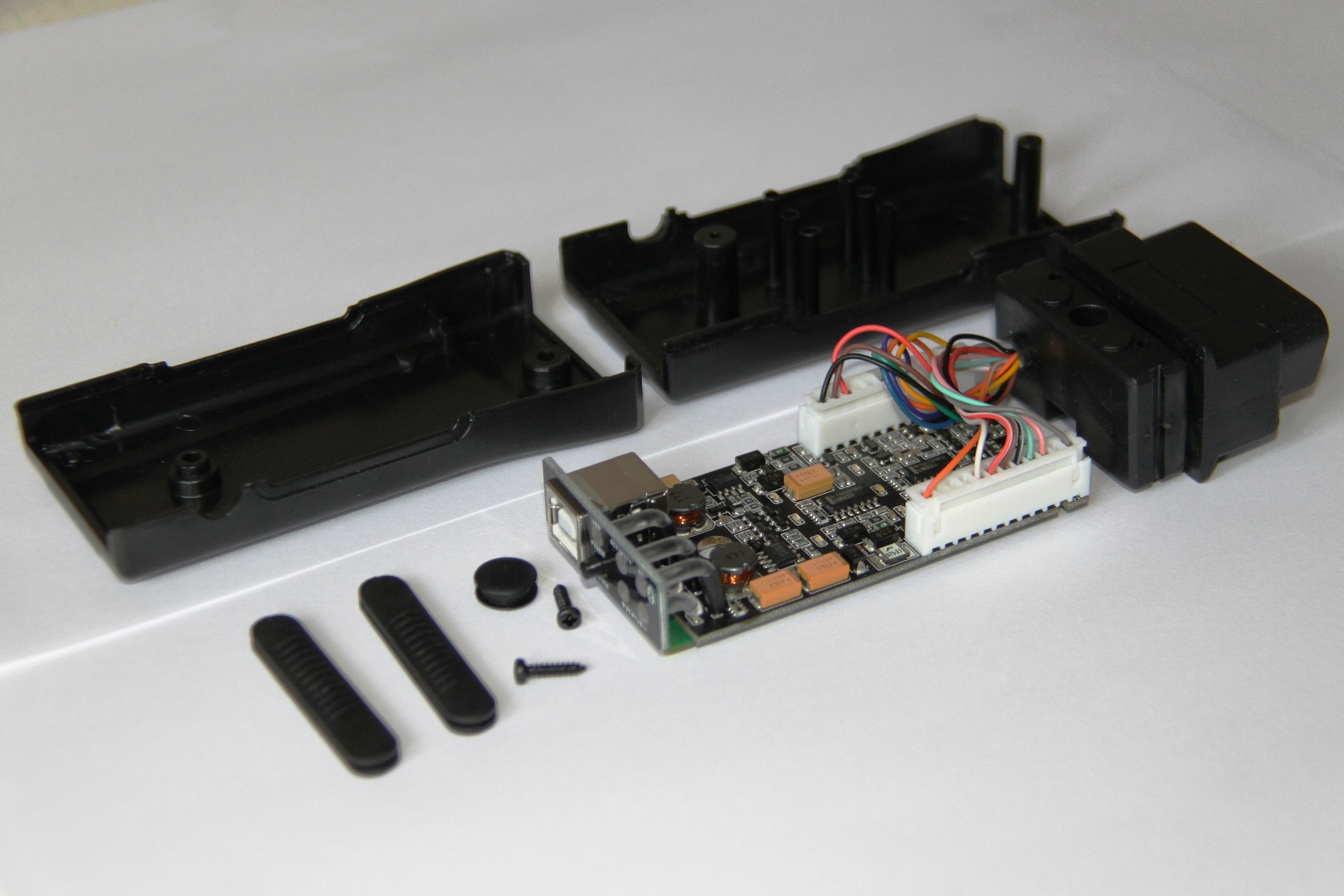

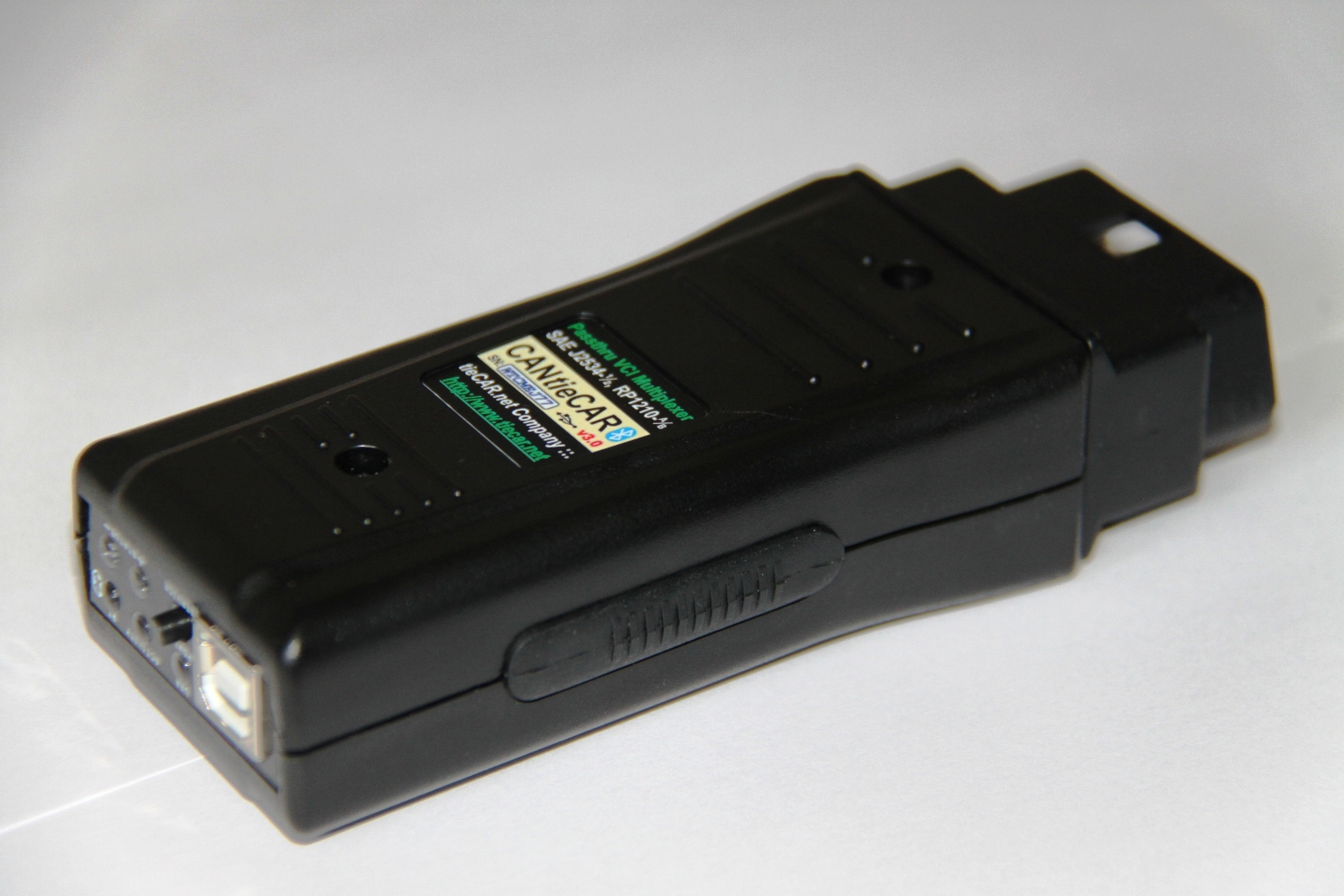

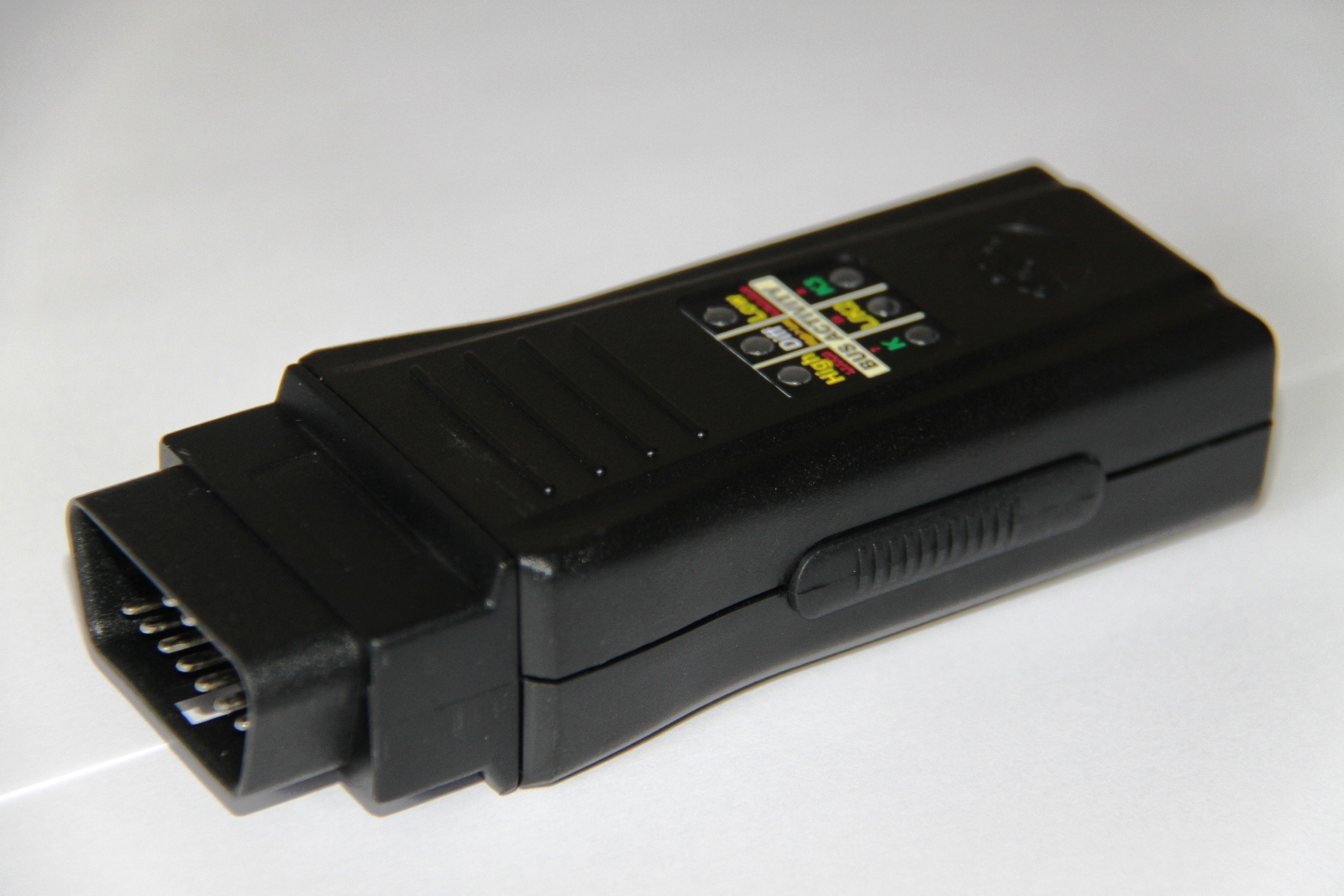

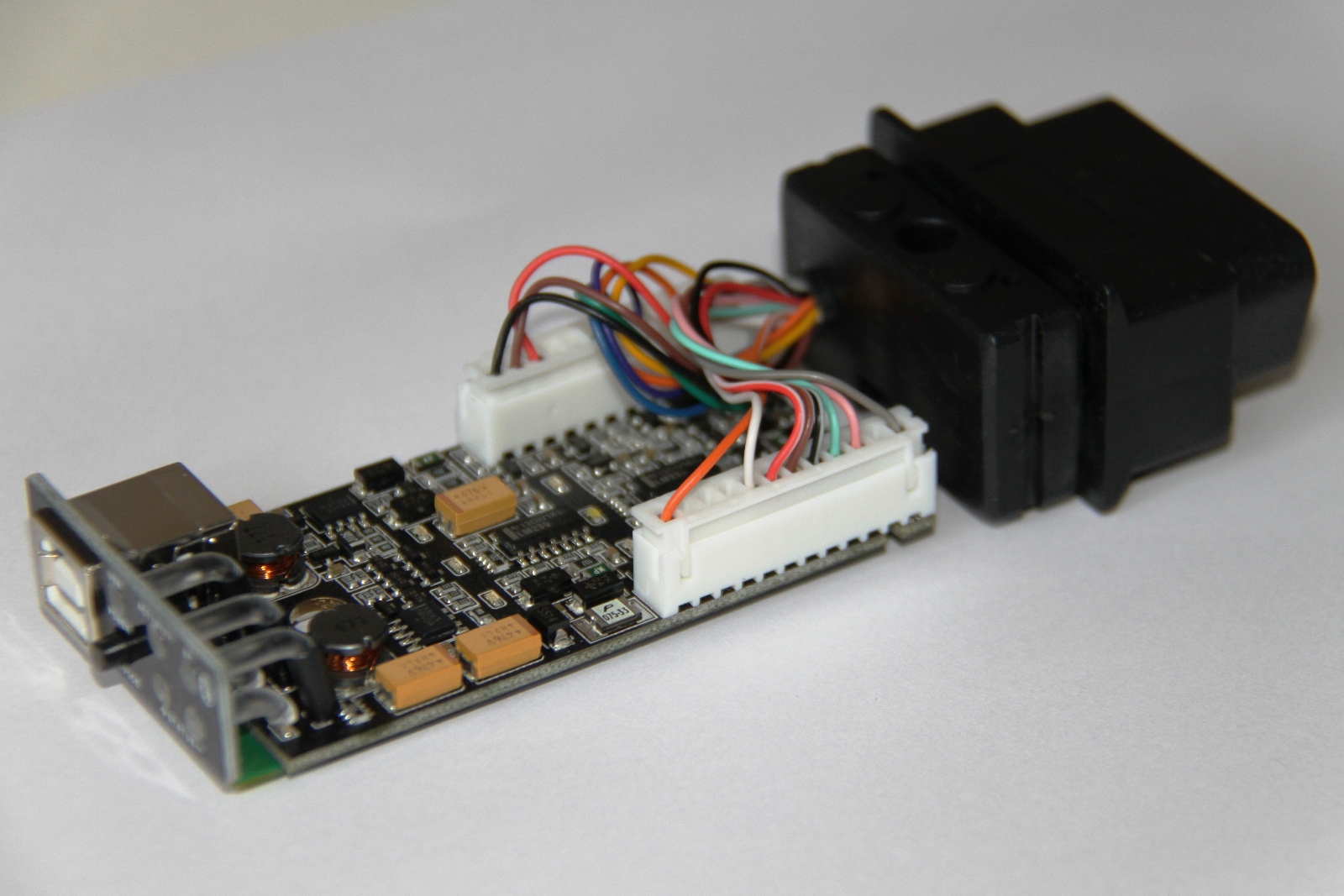

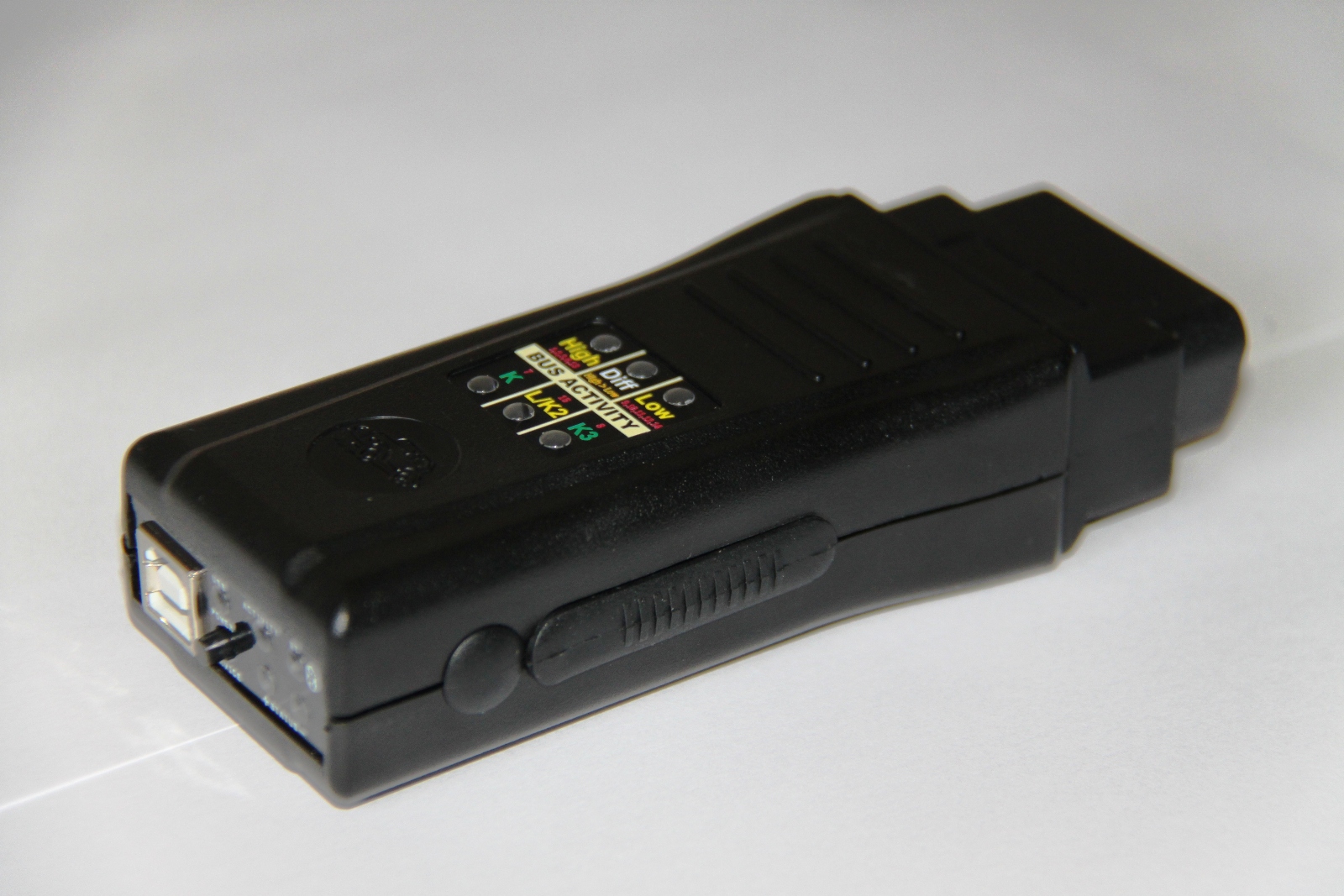

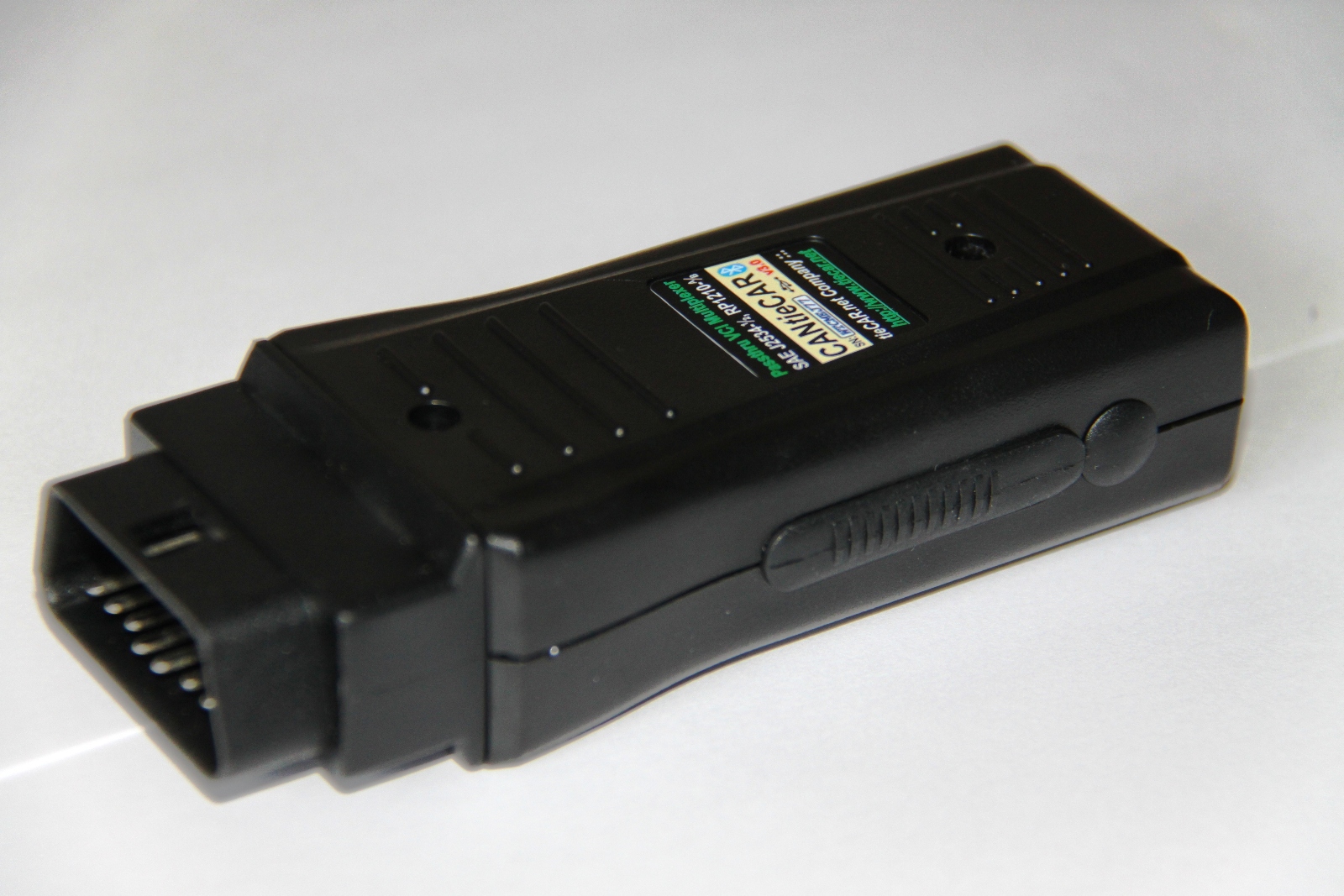

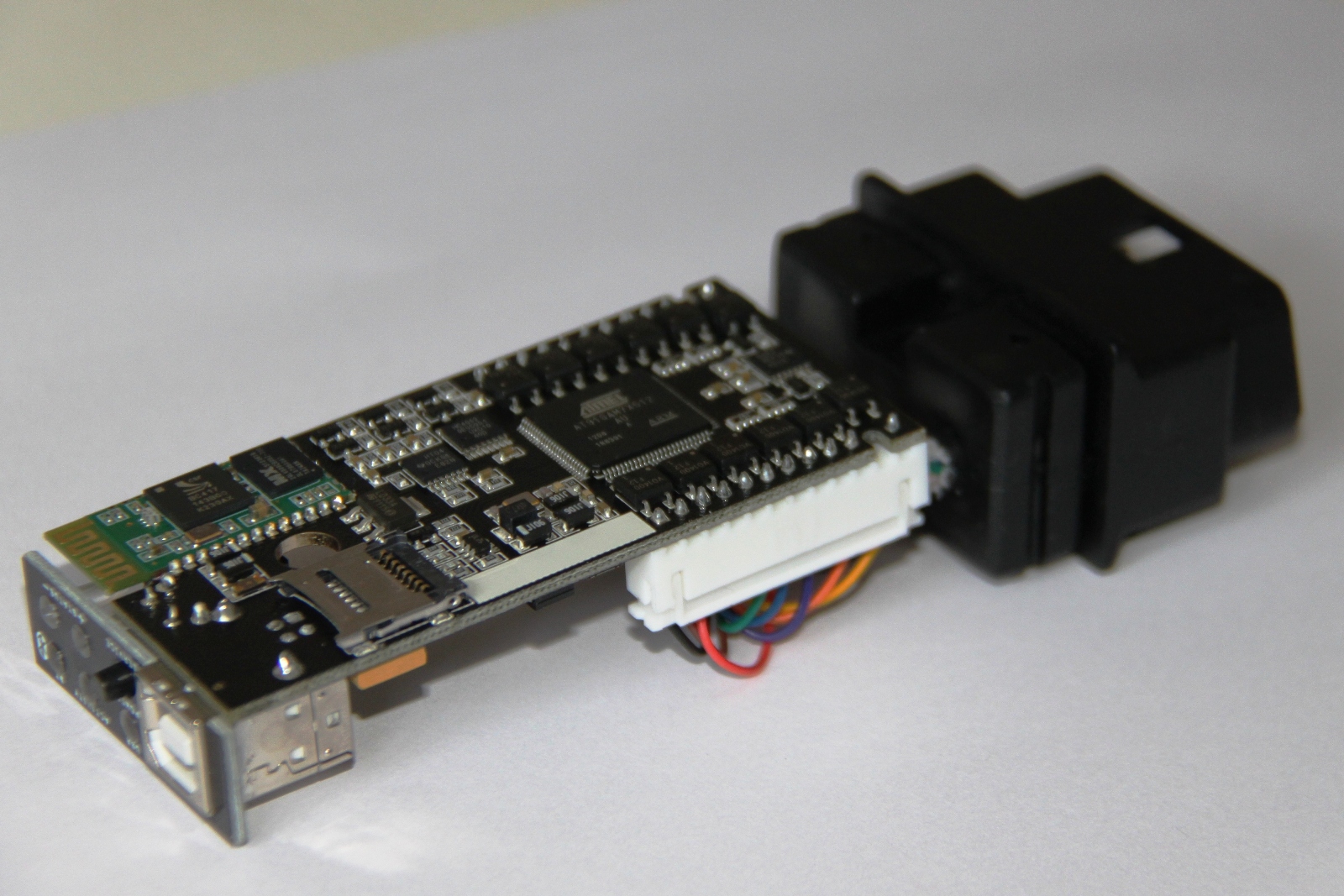

CANtieCAR v3.x

::.

Hardware: - Powerful ARM-core MCU
- Bluetooth v2.0 + EDR
- True USB-ready device: CDC, FT232B/R-emulation, FT2232C-emulation, MSD over SD Card
- SD Card: internal Flash storage with USB-MSD up to 32GB
- 3 independent ISO9141/ISO14239 K-Lines (ISO-Lines): OBDII-pins 7,8,15
- 2 multi-functional lines (MFLs): CAN - one and two-wires, K Lines, J1850, DC-DC-out (5-30V)/1W etc.
- SAE J1850PWM Normal and High Speed support: J1850PWM 41.6 Kbps and 83.3 Kbps; J1850VPW is not supported
- built-in solid state relays multiplexer for OBDII-pins 1,2,3,6,8,13 and 8,9,10,11,12,14
- built-in hardware UART multiplexer
- built-in switchable CAN-bus differential terminator 120 Ohm
- 11 Leds: 6 - Bus Activity, 1 - USB/Bluetooth TX Activity, 1 bi-color - Power state: USB and car + USB Activity, 1 - Bluetooth Status/Activity, 2 - Status
- 2 DC-DC: 5V/500mA and programmable (5-28V)/1W
- 8 ADC Channels: Power ISO-Lines, Power MFL, High MFL, Low MFL, OBD:1, OBD:8, OBD:9, OBD:16
- Systems: Up to 32V
- Speed: ISO-Lines up to 500kbit/s; CAN up to 1Mbit/s
- Special OBDII-connector design
- Security Firmware updates
- ALL protections with Resetable fuses
- Support additional equipment for cars
Emulated well-known adapters: - ECU-Emulator
- PassThru SAE J2534-1/2
- PassThru SAE J2534-1/2 - BMW up to 2008
- MultiECUScan
- ELM323 v2.0+
- ELM327 v1.4+
- ELM327 v1.4+ (ScanTool.net)
- USB-Serial (4/5:GND, 6:CTS, 7:RXD, 8:DTR/DSR, 14:RTS, 15:TXD)
- USB-Serial Inverted (4/5:GND, 6:~CTS, 7:~RXD, 8:~DTR/~DSR, 14:~RTS, 15:~TXD)
- K-Line + USB-Serial LPG/CNG (4/5:GND, 12:RX/L, 13:TX/K, 7:K)
- KL-Line (7:K, 15:L)
- 2K-Line (7:K, 15:K2)
- KKL-Line (7:K, 15:L/K2)
- 3K-Line (7:K, 15:K2, 8:K3)
- OPEL 4K-Line (7:K, 8:K3, 3:K4, 12:K5)
- Multiplexed K-Line to ALL OBD-pins
- VAGCOM v409-1 (KKL-Design)
- RS485 Duplex (12:A, 13:B)
- RS485 Half-Duplex (12:A, 13:B)
- Carsoft BMW 6.5/7.3
- Carsoft MB 7.4
- Carsoft MB 7.4 - OBDII
- Siemens Airbag 3.0
- NISSAN Consult I + Sync (10:TX, 2:RX, 7:SYNC)
- NISSAN Consult I - OBDII (12:TX, 13:RX)
- DIESEL-kit v1.0
- VOLVO 9998555
- P.A.Soft BMW Scanner v1.2.5
- P.A.Soft BMW Scanner v1.3.6
- P.A.Soft BMW Scanner v1.4.0 Demo
- P.A.Soft BMW Scanner v1.4.x
- BMW EDIABAS: STD:OBD
- BMW EDIABAS: ADS
- BMW EDIABAS: D-CAN Combo (STD:OBD K + D-CAN)
- BMW EDIABAS: D-CAN Fast (STD:OBD D-CAN)
- BMW EDIABAS: D-CAN Fxx (STD:OBD D-CAN for F-series)
- BMW EDIABAS: JBE PT-CAN (STD:OBD + JBE CAN 500k)
- BMW EDIABAS: JBE K-CAN (STD:OBD + JBE CAN 100k)
- BMW EDIABAS: FEM x-CAN 6/14 (STD:OBD + FEM CAN 500k)
- DigiProg OBDII Flasher
- KWP2000 Flasher
- KWP2000 PLUS Flasher
- CMD EDC16 OBDII Flasher v1236 - K-Line
- CMD EDC16 OBDII Flasher v1244 - K-Line
- CMD EDC16 OBDII Flasher v1251 - CAN
- CMD EDC16 OBDII Flasher v1255 - K-Line
- CMD MAP3Diag
- CMD MPC5xx BDM Programmer v1251 (4/5:GND-6, 6:RST-1, 7:DI-7, 8:SCK-5, 14:IGN-2, 15:DO-8, 16:PWR-9)
- Galletto v1050/1080 EOBDII Flasher
- Galletto v1245 EOBDII Flasher
- Galletto v1250 EOBDII Flasher
- Galletto v1260 EOBDII Flasher
- VAG K+CAN Commander v1.4/v2.5/v3.6
- LICZNIK USB Dongle for v4.8a
- Lawicel CAN232 v3 (6:High, 14:Low)
- Lawicel CANUSB v1 (6:High, 14:Low)
- PonyProg2000 (4/5:GND-10, 6:IN#-6, 7:OUT#-5, 8:SCLK#-4, 14:VCC/RST-1/3, 15:RST#-2)
- EDiTH Eberspacher ISO Adapter
- OpenPort v1
- OpenPort v1.2
- OpenPort v1.3 Universal (11:Vpp/Boot)

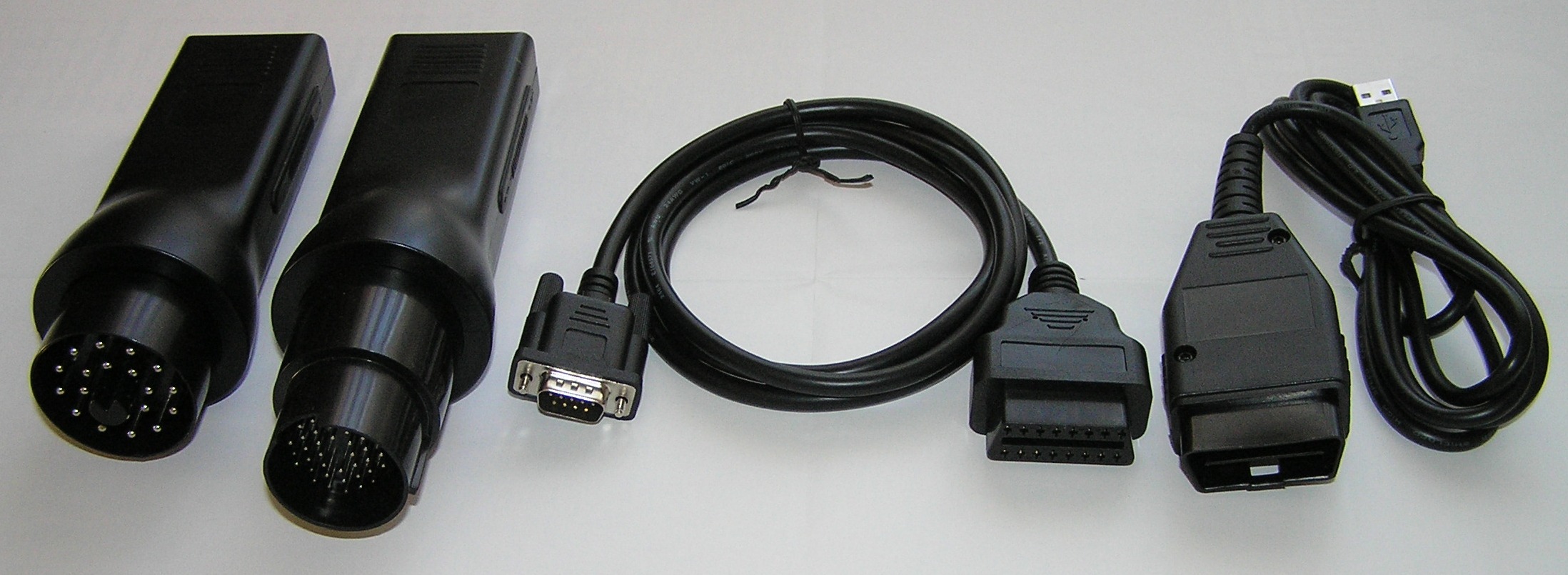

Additional equipment: OBDII-Female to DB15-Male Cable
DB15-Female to OBDII-Male-16pins Adapter
DB15-Female to BMW-Male-20pins Adapter
DB15-Female to BMW-Male-20pins Cable
Status: Discontinued
Support: Critical bugs fixing

[ support | top ]

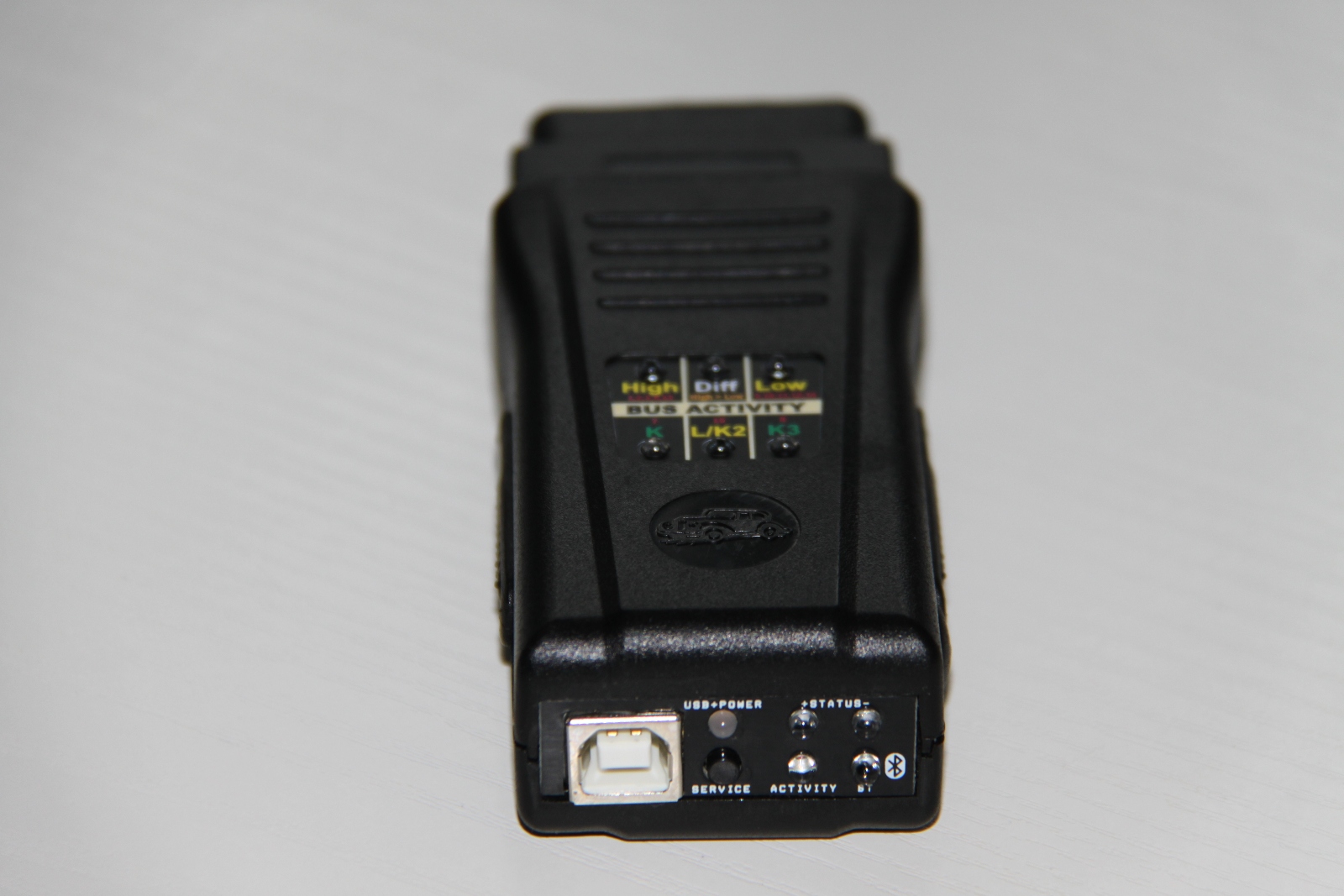

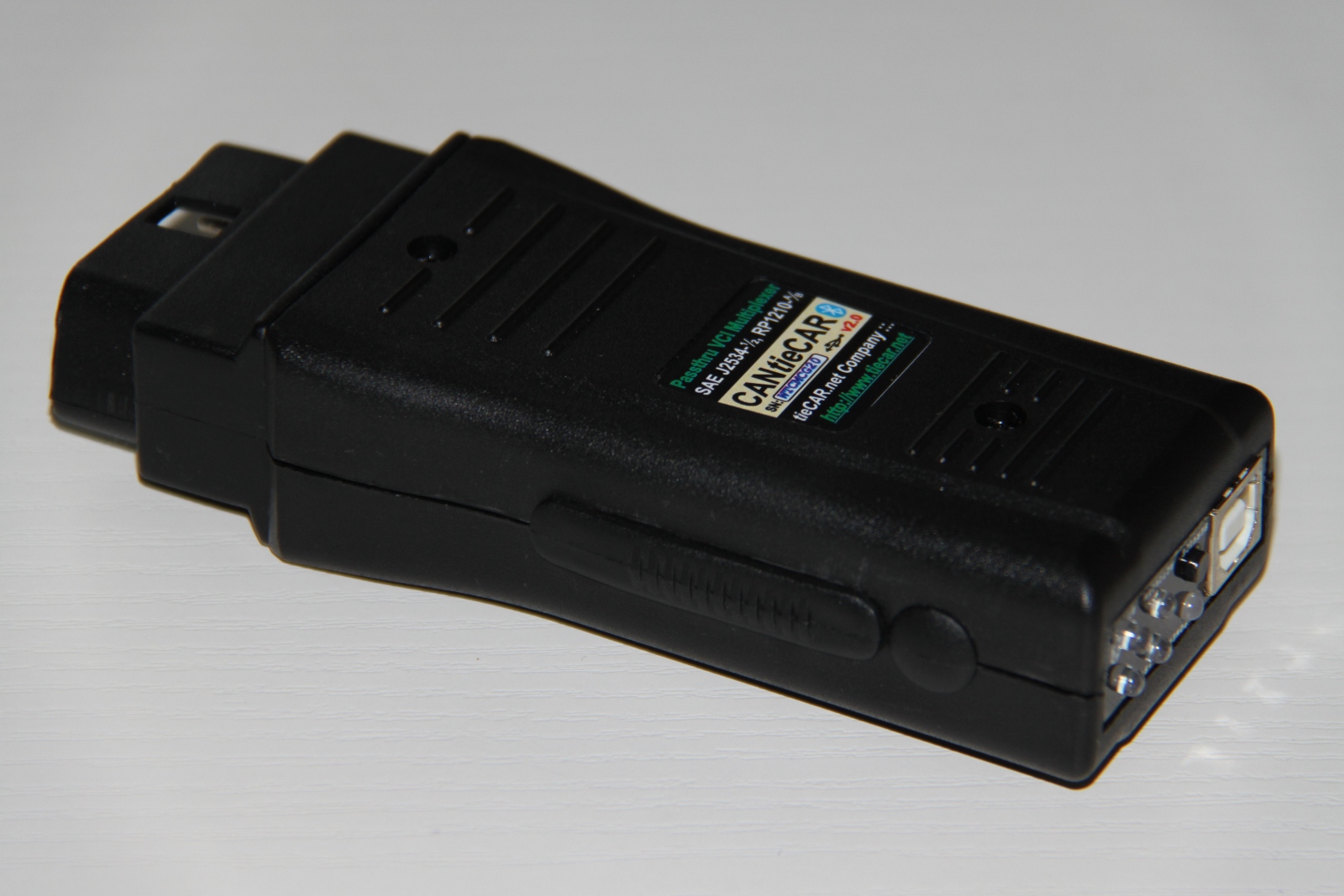

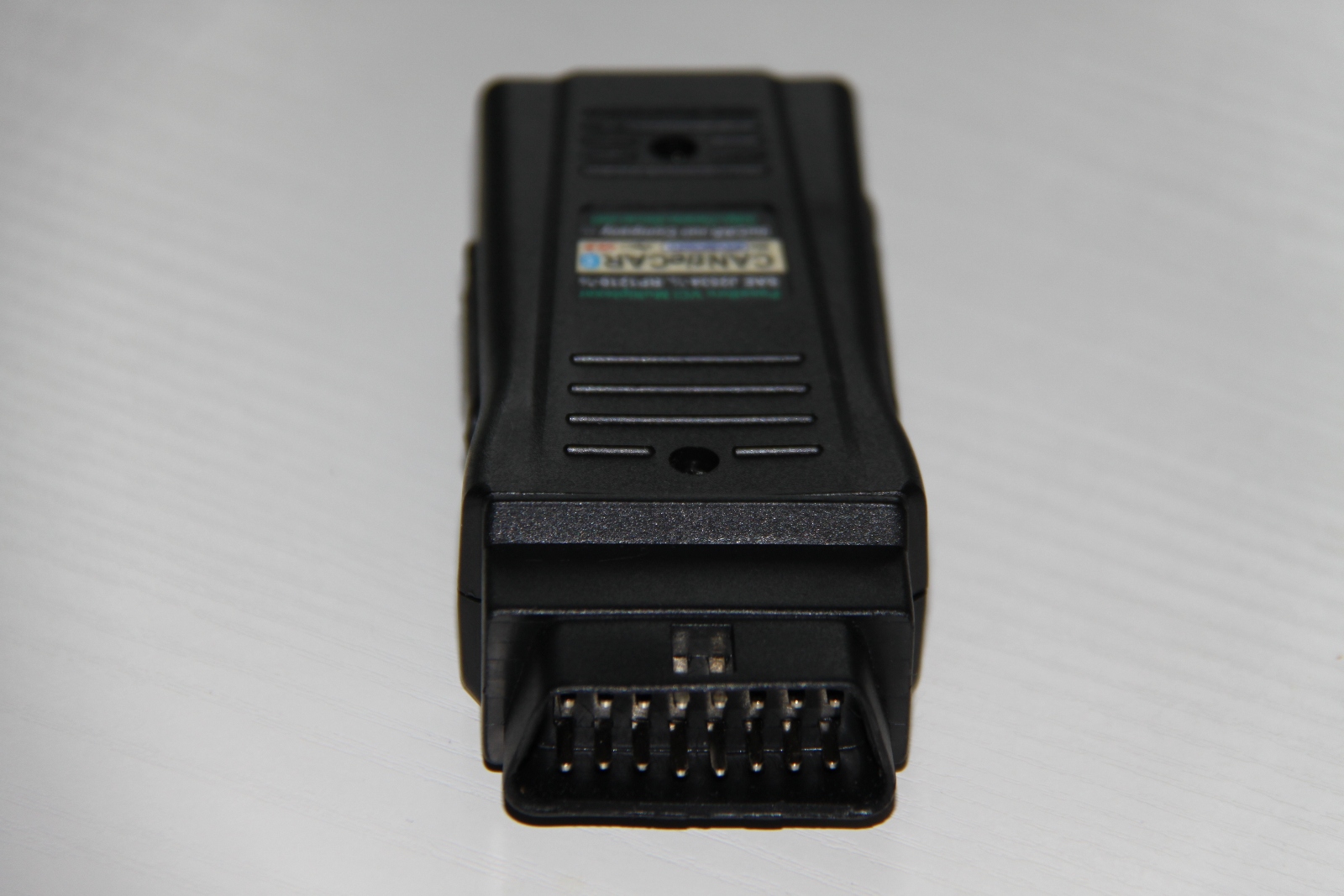

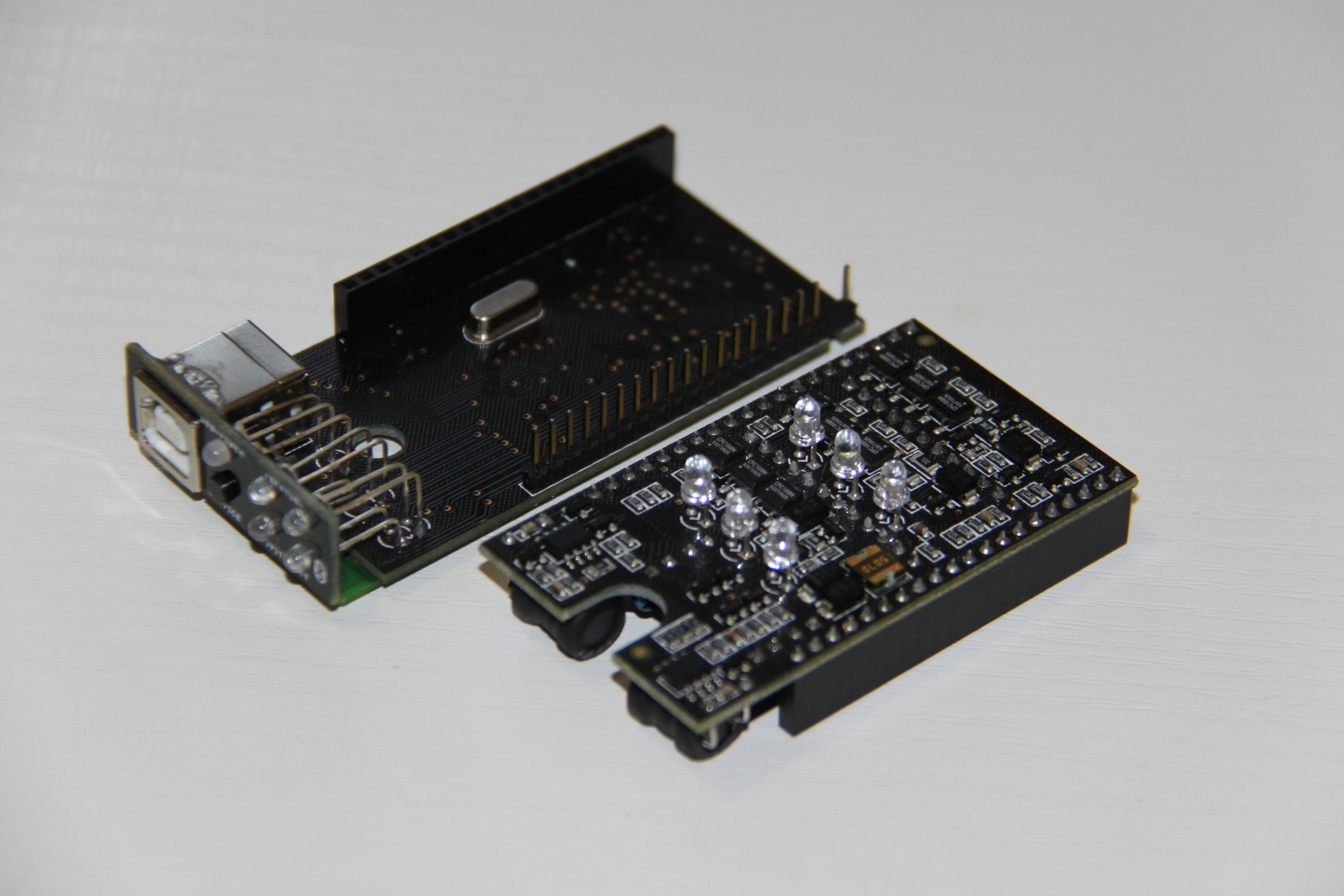

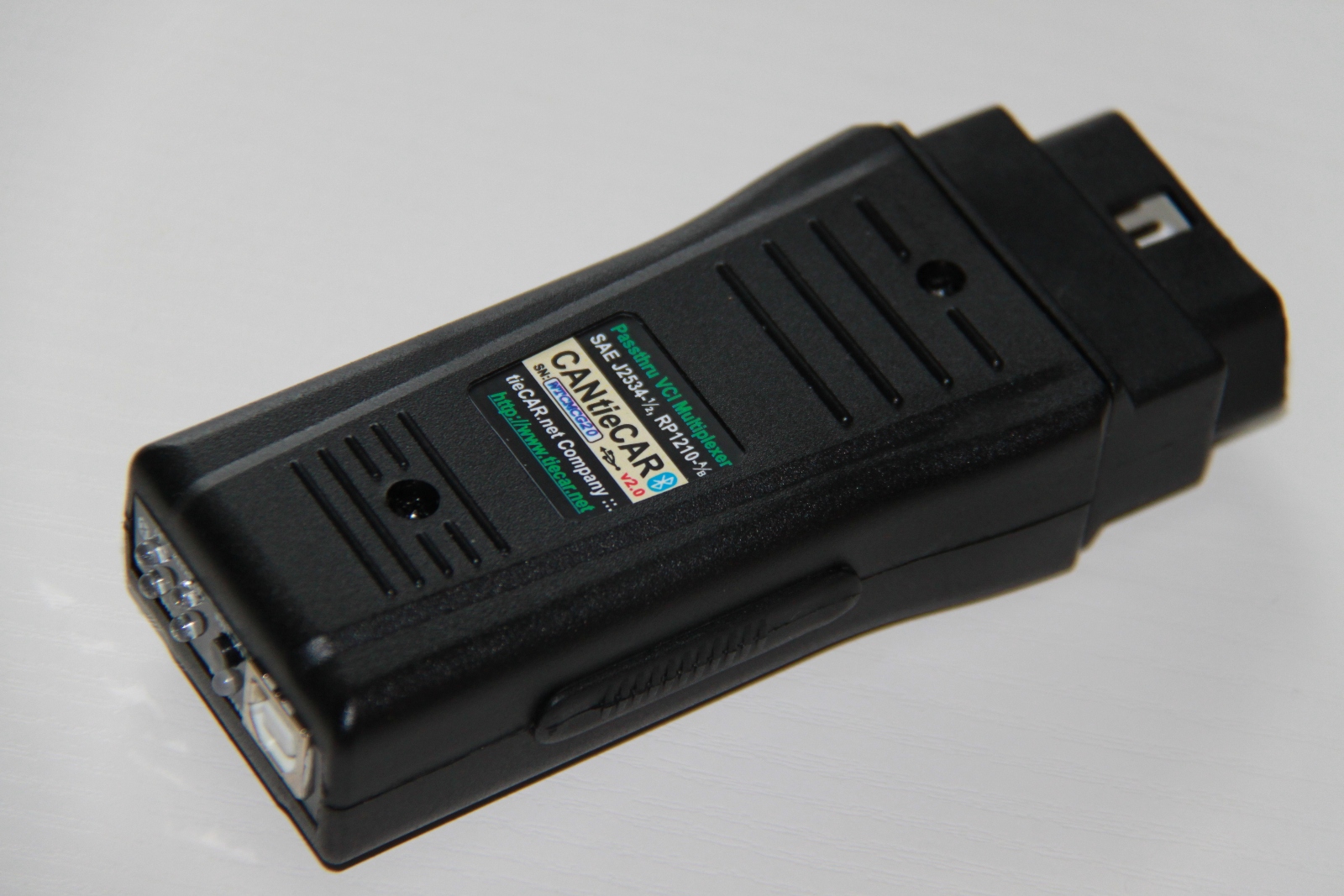

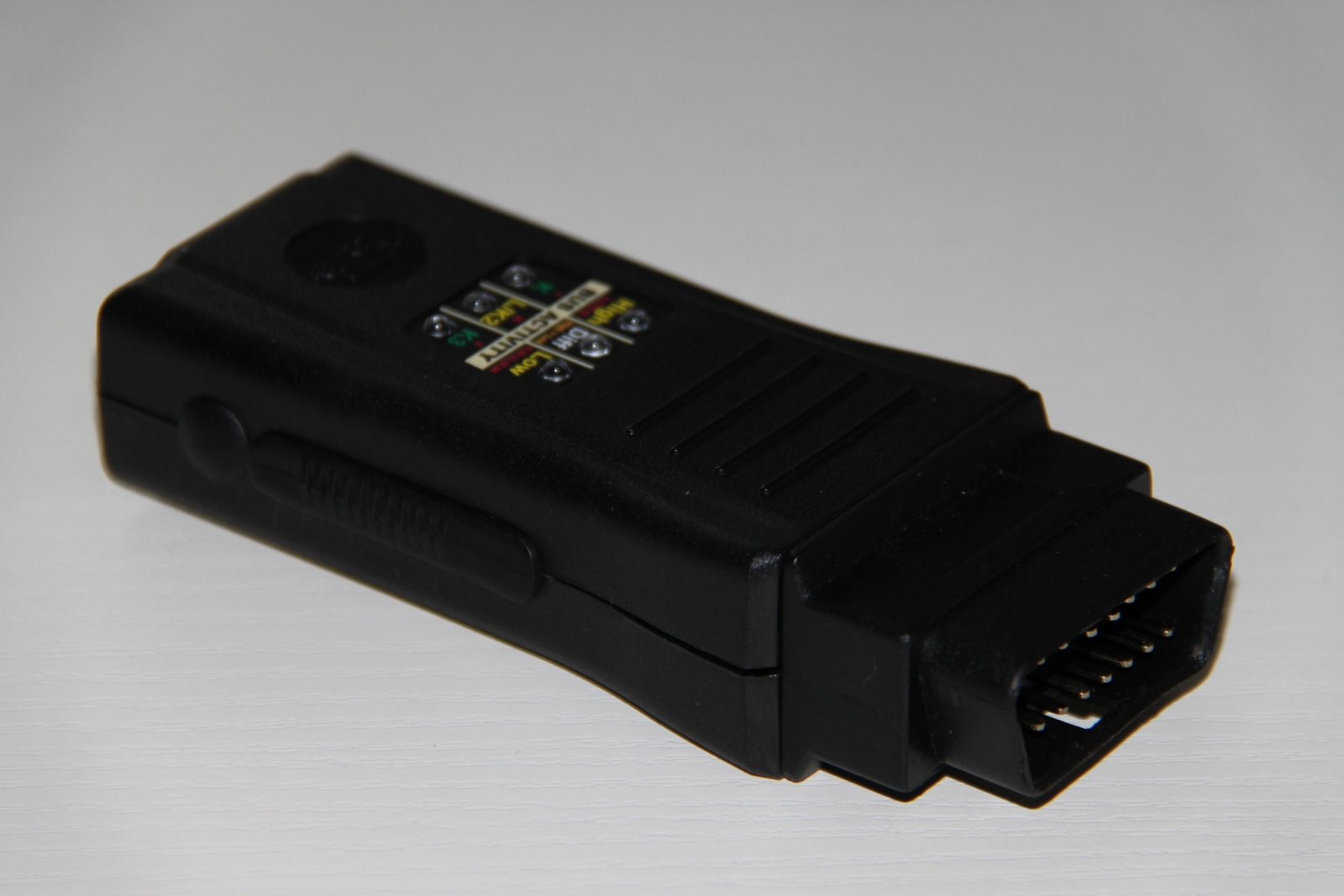

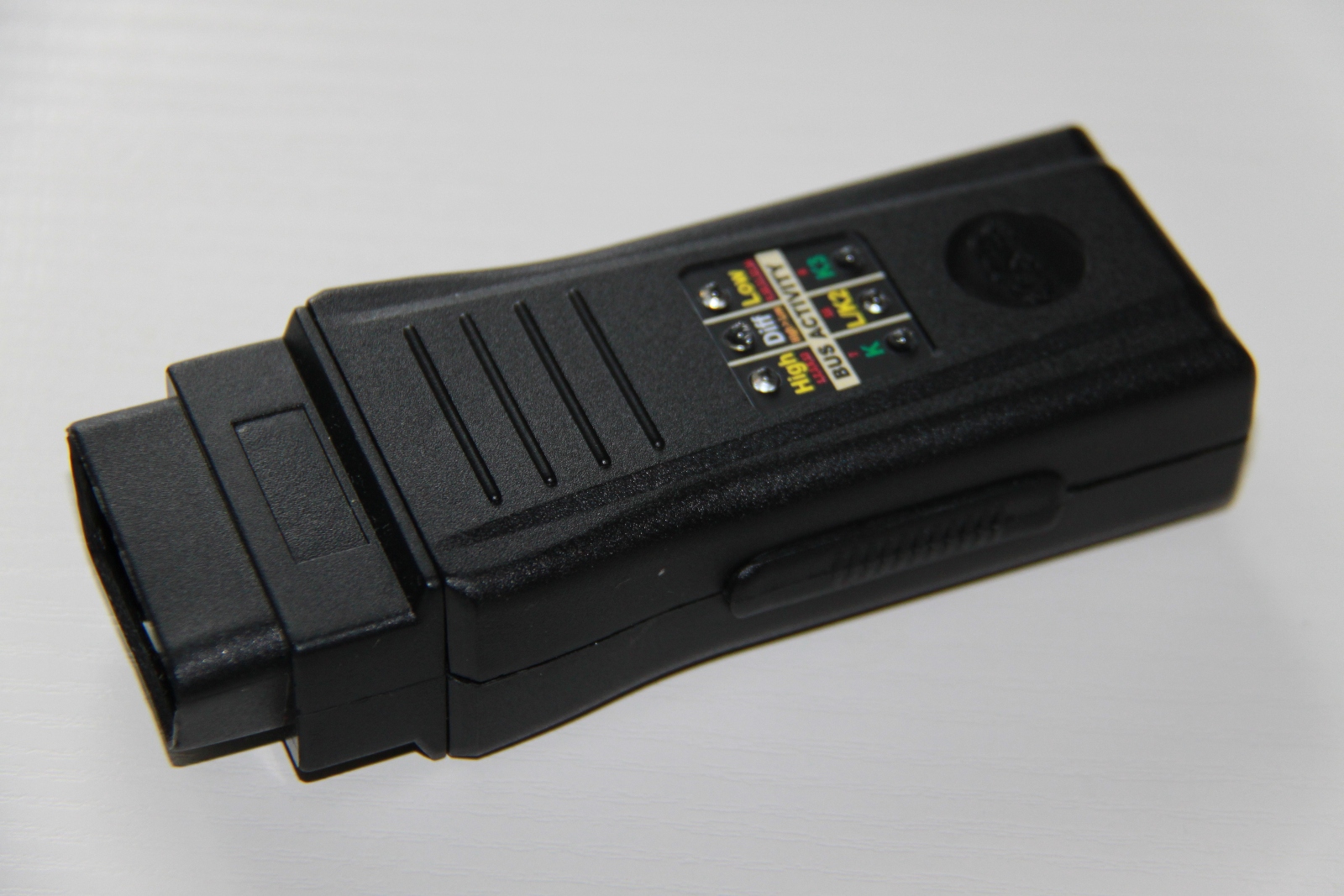

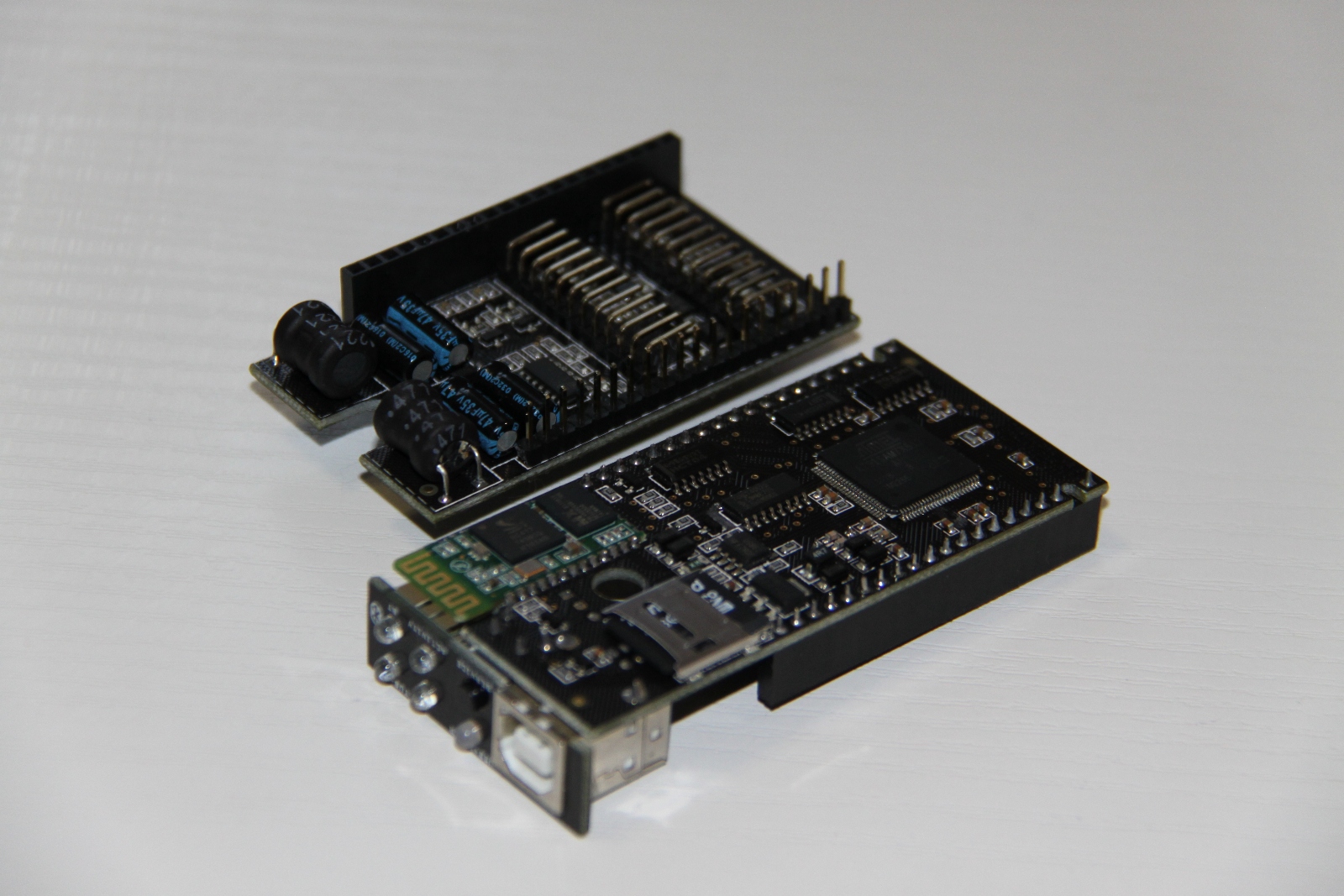

CANtieCAR v2.x

::.

Hardware: - Powerful ARM-core MCU
- Bluetooth v2.0 + EDR
- True USB-ready device: CDC, FT232B/R-emulation, FT2232C-emulation, MSD over SD Card
- SD Card: internal Flash storage with USB-MSD up to 32GB
- 3 independent ISO9141/ISO14239 K-Lines (ISO-Lines): OBDII-pins 7,8,15
- 2 multi-functional lines (MFLs): CAN - one and two-wires, K Lines, J1850, DC-DC-out (5-30V)/1W etc.
- SAE J1850PWM Normal and High Speed support: J1850PWM 41.6 Kbps and 83.3 Kbps; J1850VPW is not supported
- built-in solid state relays multiplexer for OBDII-pins 1,2,3,6,13 and 9,10,11,12,14
- built-in hardware UART multiplexer
- 11 Leds: 6 - Bus Activity, 1 - USB/Bluetooth TX Activity, 1 bi-color - Power state: USB and car + USB Activity, 1 - Bluetooth Status/Activity, 2 - Status
- 2 DC-DC: 5V/500mA and programmable (5-30V)/1W
- 4 ADC Channels: Power ISO-Lines, Power MFL, High MFL, Low MFL
- Systems: Up to 32V
- Speed: ISO-Lines up to 500kbit/s; CAN up to 1Mbit/s
- Special OBDII-connector design
- Security Firmware updates
- ALL protections with Resetable fuses
- Support additional equipment for cars
Emulated well-known adapters: - PassThru SAE J2534-1/2
- PassThru SAE J2534-1/2 - BMW up to 2008
- MultiECUScan
- ELM323 v2.0+
- ELM327 v1.4+
- ELM327 v1.4+ (ScanTool.net)
- USB-Serial (4/5:GND, 6:CTS, 7:RXD, 8:DTR/DSR, 14:RTS, 15:TXD)
- USB-Serial Inverted (4/5:GND, 6:~CTS, 7:~RXD, 8:~DTR/~DSR, 14:~RTS, 15:~TXD)
- K-Line + USB-Serial LPG/CNG (4/5:GND, 12:RX/L, 13:TX/K, 7:K)
- KL-Line (7:K, 15:L)
- 2K-Line (7:K, 15:K2)
- KKL-Line (7:K, 15:L/K2)
- 3K-Line (7:K, 15:K2, 8:K3)
- OPEL 4K-Line (7:K, 8:K3, 3:K4, 12:K5)
- Multiplexed K-Line to ALL OBD-pins
- VAGCOM v409-1 (KKL-Design)
- RS485 Duplex (12:A, 13:B)
- RS485 Half-Duplex (12:A, 13:B)
- Carsoft BMW 6.5/7.3
- Carsoft MB 7.4
- Carsoft MB 7.4 - OBDII
- Siemens Airbag 3.0
- NISSAN Consult I + Sync (10:TX, 2:RX, 7:SYNC)
- NISSAN Consult I - OBDII (12:TX, 13:RX)
- DIESEL-kit v1.0
- VOLVO 9998555
- P.A.Soft BMW Scanner v1.2.5
- P.A.Soft BMW Scanner v1.3.6
- P.A.Soft BMW Scanner v1.4.0 Demo
- P.A.Soft BMW Scanner v1.4.x
- BMW EDIABAS: STD:OBD
- BMW EDIABAS: ADS
- BMW EDIABAS: D-CAN Combo (STD:OBD K + D-CAN)
- BMW EDIABAS: D-CAN Fast (STD:OBD D-CAN)
- BMW EDIABAS: D-CAN Fxx (STD:OBD D-CAN for F-series)
- BMW EDIABAS: JBE PT-CAN (STD:OBD + JBE CAN 500k)
- BMW EDIABAS: JBE K-CAN (STD:OBD + JBE CAN 100k)
- BMW EDIABAS: FEM x-CAN 6/14 (STD:OBD + FEM CAN 500k)
- DigiProg OBDII Flasher
- KWP2000 Flasher
- KWP2000 PLUS Flasher
- CMD EDC16 OBDII Flasher v1236 - K-Line
- CMD EDC16 OBDII Flasher v1244 - K-Line
- CMD EDC16 OBDII Flasher v1251 - CAN
- CMD EDC16 OBDII Flasher v1255 - K-Line
- CMD MAP3Diag
- CMD MPC5xx BDM Programmer v1251 (4/5:GND-6, 6:RST-1, 7:DI-7, 8:SCK-5, 14:IGN-2, 15:DO-8, 16:PWR-9)
- Galletto v1050/1080 EOBDII Flasher
- Galletto v1245 EOBDII Flasher
- Galletto v1250 EOBDII Flasher
- Galletto v1260 EOBDII Flasher
- VAG K+CAN Commander v1.4/v2.5/v3.6
- LICZNIK USB Dongle for v4.8a
- Lawicel CAN232 v3 (6:High, 14:Low)
- Lawicel CANUSB v1 (6:High, 14:Low)
- PonyProg2000 (4/5:GND-10, 6:IN#-6, 7:OUT#-5, 8:SCLK#-4, 14:VCC/RST-1/3, 15:RST#-2)
- EDiTH Eberspacher ISO Adapter
- OpenPort v1
- OpenPort v1.2
- OpenPort v1.3 Universal (11:Vpp/Boot)
Additional equipment: OBDII-Female to DB15-Male Cable
DB15-Female to OBDII-Male-16pins Adapter
DB15-Female to BMW-Male-20pins Adapter
DB15-Female to BMW-Male-20pins Cable
Status: Discontinued
Support: Critical bugs fixing

[ support | top ]

CANtieCAR v1.x ::.

Hardware: - Powerful ARM-core MCU
- True USB-ready device: CDC, FT232B/R-emulation, FT2232C-emulation, MSD over SD Card
- SD Card: internal connector for large storage with USB-MSD up to 32GB
- 3 independent ISO9141/ISO14239 K-Lines (ISO-Lines): OBDII-pins 7,8,15
- 2 multi-functional lines (MFLs): CAN - one and two-wires, K Lines, J1850, DC-DC-out (5-30V)/1W etc.
- SAE J1850PWM Normal and High Speed support: J1850PWM 41.6 Kbps and 83.3 Kbps; J1850VPW is not supported
- built-in solid state relays multiplexer for OBDII-pins 1,2,3,6,13 and 9,10,11,12,14
- 10 Leds: 6 - lines activity, 1 - USB TX activity, 1 bi-color - power state: USB and car + USB activity, 2 - status
- 2 DC-DC: 5V/500mA and programmable (5-30V)/1W
- 4 ADC Channels: Power ISO-Lines, Power MFL, High MFL, Low MFL
- Systems: Up to 32V
- Speed: ISO-Lines up to 250kbit/s; CAN up to 1Mbit/s
- Special OBDII-connector design
- Security Firmware updates
- ALL protections
- Support additional equipment for cars
Emulated well-known adapters: - PassThru SAE J2534-1/2
- PassThru SAE J2534-1/2 - BMW up to 2008
- MultiECUScan
- ELM323 v2.0+
- ELM327 v1.4+
- ELM327 v1.4+ (ScanTool.net)
- USB-Serial (4/5:GND, 6:CTS, 7:RXD, 8:DTR/DSR, 14:RTS, 15:TXD)
- USB-Serial Inverted (4/5:GND, 6:~CTS, 7:~RXD, 8:~DTR/~DSR, 14:~RTS, 15:~TXD)
- USB-Serial LPG/CNG (4/5:GND, 12:RX/L, 13:TX/K)
- KL-Line (7:K, 15:L)
- 2K-Line (7:K, 15:K2)
- KKL-Line (7:K, 15:L/K2)
- 3K-Line (7:K, 15:K2, 8:K3)
- OPEL 4K-Line (7:K, 8:K3, 3:K4, 12:K5)
- Multiplexed K-Line to ALL OBD-pins
- VAGCOM v409-1 (KKL-Design)
- RS485 Duplex (12:A, 13:B)
- RS485 Half-Duplex (12:A, 13:B)
- Carsoft BMW 6.5/7.3
- Carsoft MB 7.4
- Carsoft MB 7.4 - OBDII
- Siemens Airbag 3.0
- NISSAN Consult I + Sync (10:TX, 2:RX, 7:SYNC)
- NISSAN Consult I - OBDII (12:TX, 13:RX)
- DIESEL-kit v1.0
- VOLVO 9998555
- P.A.Soft BMW Scanner v1.2.5
- P.A.Soft BMW Scanner v1.3.6
- P.A.Soft BMW Scanner v1.4.0 Demo
- P.A.Soft BMW Scanner v1.4.x
- BMW EDIABAS: STD:OBD
- BMW EDIABAS: ADS
- BMW EDIABAS: D-CAN Combo (STD:OBD K + D-CAN)
- BMW EDIABAS: D-CAN Fast (STD:OBD D-CAN)
- BMW EDIABAS: D-CAN Fxx (STD:OBD D-CAN for F-series)
- BMW EDIABAS: JBE PT-CAN (STD:OBD + JBE CAN 500k)
- BMW EDIABAS: JBE K-CAN (STD:OBD + JBE CAN 100k)
- BMW EDIABAS: FEM x-CAN 6/14 (STD:OBD + FEM CAN 500k)
- DigiProg OBDII Flasher
- KWP2000 Flasher
- KWP2000 PLUS Flasher
- CMD EDC16 OBDII Flasher v1236 - K-Line
- CMD EDC16 OBDII Flasher v1244 - K-Line
- CMD EDC16 OBDII Flasher v1251 - CAN
- CMD EDC16 OBDII Flasher v1255 - K-Line
- CMD MAP3Diag
- CMD MPC5xx BDM Programmer v1251 (4/5:GND-6, 6:RST-1, 7:DI-7, 8:SCK-5, 14:IGN-2, 15:DO-8, 16:PWR-9)
- Galletto v1050/1080 EOBDII Flasher
- Galletto v1245 EOBDII Flasher
- Galletto v1250 EOBDII Flasher
- Galletto v1260 EOBDII Flasher
- VAG K+CAN Commander v1.4/v2.5/v3.6
- LICZNIK USB Dongle for v4.8a
- Lawicel CAN232 v3 (6:High, 14:Low)
- Lawicel CANUSB v1 (6:High, 14:Low)
- PonyProg2000 (4/5:GND-10, 6:IN#-6, 7:OUT#-5, 8:SCLK#-4, 14:VCC/RST-1/3, 15:RST#-2)
- EDiTH Eberspacher ISO Adapter
- OpenPort v1
- OpenPort v1.2
- OpenPort v1.3 Universal (11:Vpp/Boot)
Additional equipment: OBDII-Female to DB15-Male Cable
DB15-Female to OBDII-Male-16pins Adapter
DB15-Female to BMW-Male-20pins Adapter
DB15-Female to BMW-Male-20pins Cable
DB15-Female to MB-Male-38pins Multiplexer
Status: Discontinued
Support: Stopped

[ support | top ]

USB-CAN ::.

Hardware: 3 Leds - TX, RX, Bus
Speed - Up to 1Mbit/s
Systems - Up to 24V
Security Firmware updates
Software: Analyser CAN-bus - winCAN
winCAN is intended for capture research of any CAN buses version 2.0 A/B (active and passive)
viewing frames in serial graphic and list forms
collecting IDs
storing results and descriptions in MS Access DB
captured frames are stored in text file.
For Software Developers: Communication protocol will be described
Special prices
Status: Discontinued
Support: Stopped

[ view | docs]

[ support | top ]

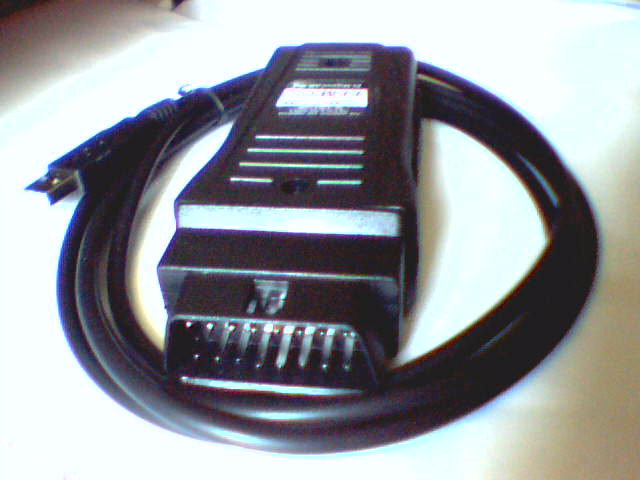

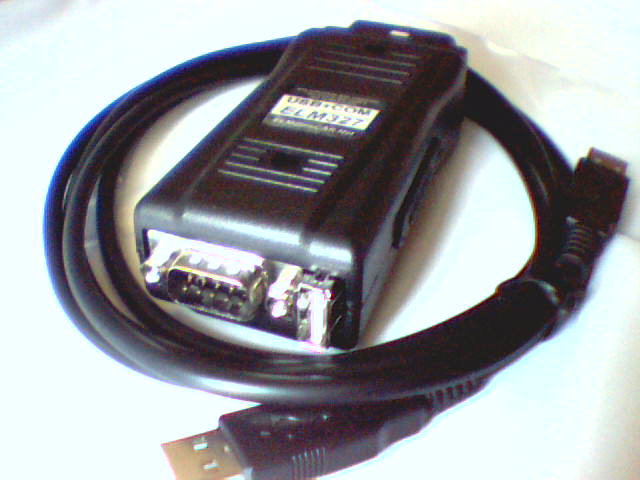

USB+COM-ELM327 ::.

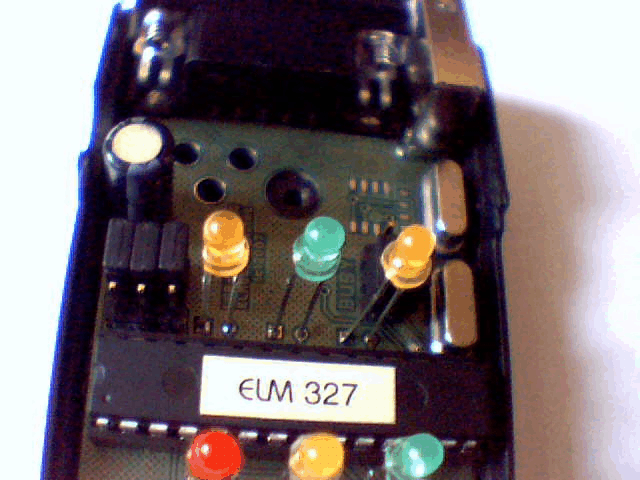

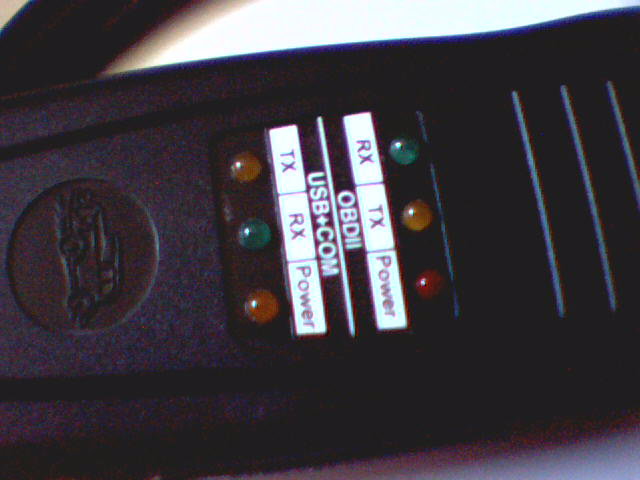

Hardware: 6 Leds - OBD: TX, RX, Power; USB+COM: TX, RX, Power
5 Jumpers - Baudrate(38400/9600), Memory, LineFeed, FlowControl
Systems - Up to 24V
BlueTooth ready !!!
Official license for ScanMaster-ELM v2.1 from WGSoft.de can be supplied
Software: ScanMaster
ScanTool.net
EasyObdII.com
Status: Discontinued
Support: Stopped

[ view 1 | view 2 | view 3 | view 4 | Bluetooth ]

[ support | top ]

USB-swISO v2.x ::.

Hardware: 3 independent ISO9141/ISO14239 lines
4 Leds - RX, K-Line, L/K2-Line, Power
Speed - Up to 230kbit/s for K- and L/K2-Lines, Up to 100kbits/s for K3-Line
Systems - Up to 24V
Special OBDII-connector design
Additional equipment for cars
Security Firmware updates
Emulated well-known adapters: - KL-Line
- KKL-Line
- KK-Line
- KKK-Line (OPEL 4K-Line)
- CarSoft BMW 6.5
- CarSoft MB 7.4
- Consult NISSAN (SCI)
- ThroughPass:RTS=10,TX=15,RX=7
- ThroughPass:DTR=10,TX=15,RX=7
- ELM323 v2.0+
- VW Airbag 3.0
- P.A.Soft BMW Scanner v1.2.5
- P.A.Soft BMW Scanner v1.3.6
- KWP2000 Flasher
- KWP2000 PLUS Flasher
- DigiProg OBDII Flasher
- EDC16 OBDII Flasher
- Galletto v1260 EOBDII Flasher (available v1050/1080, v1245, v1250)
- DIESEL-kit v1.0
- BMW EDIABAS: STD:OBD
- BMW EDIABAS: ADS

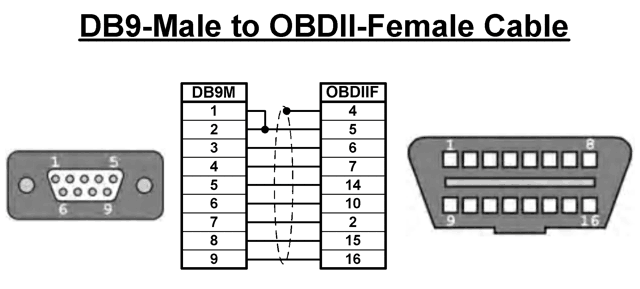

Additional equipment: OBDII-Female to DB9-Male Cable - 1.2 m

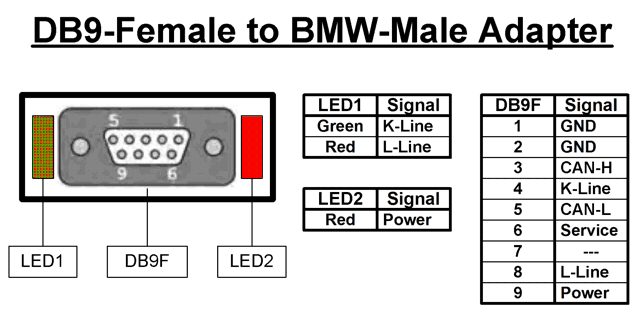

DB9-Female to BMW-Male-20pins Adapter

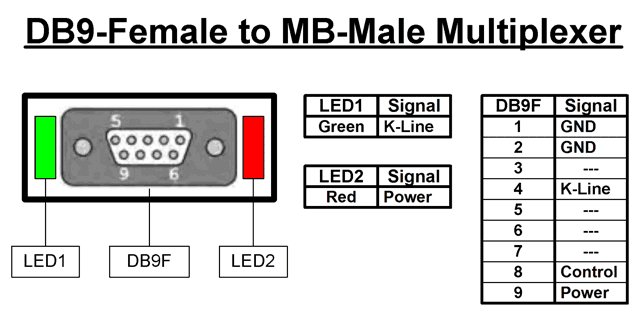

DB9-Female to MB-Male-38pins Multiplexer
Trademarks: OktjaScan™
MultiCarTune™
ALLinONE™
USB-CarHelp2™
You are welcomed...
Status: Discontinued
Support: Stopped

[ view ]

[ support | top ]

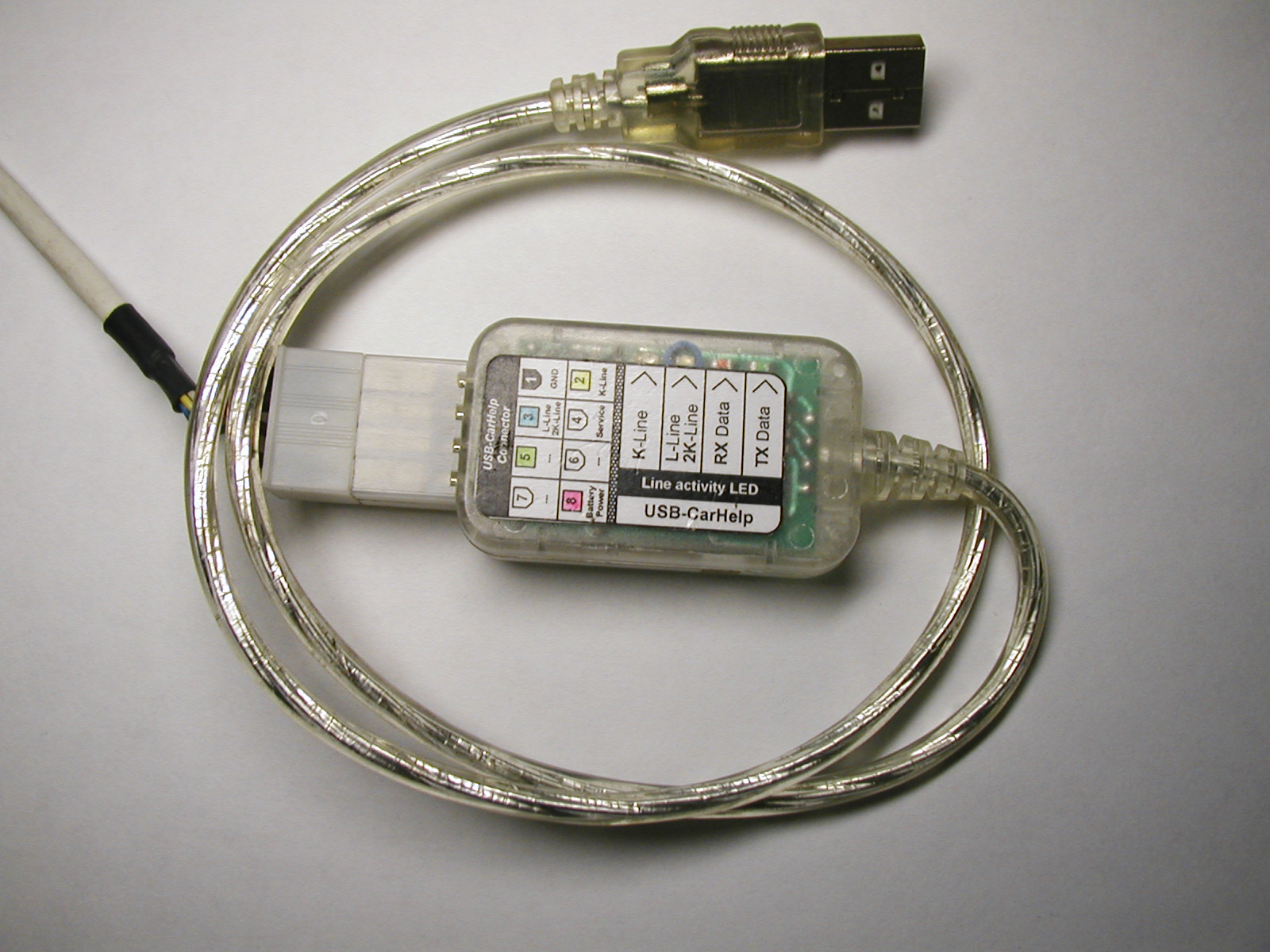

USB-swISO v1.x ::.

Hardware: 2 independent ISO9141/ISO14239 lines
4 Leds - RX, TX, K-Line, L/K2-Line
Speed - Up to 230kbit/s for K- and L/K2-Lines
Systems - Up to 24V
Additional equipment for cars
Security Firmware updates
Emulated well-known adapters: 1 - KL-Line
2 - KKL-Line
3 - CarSoft BMW 6.5
4 - CarSoft MB 7.4
5 - Consult NISSAN (SCI)
6 - ThroughPass+RTS:TX=15,RX=7,RTS=10
7 - KK-Line
Additional equipment: OBDII-Female to DB9-Male Cable - 1.2 m
DB9-Female to BMW-Male-20pins Adapter
Trademarks: USB-CarHelp™
Status: Discontinued
Support: Stopped

[ view ]

[ support | top ]
