#51
CANtieCAR / ELM327 mode - can't connect to...
Last post by dbh97 - February 22, 2022, 23:52:48My CANtieCAR won't connect to my 2007 Chrysler Town & Country in ELM327 mode. I'm using the "Car Scanner" Android app.
I believe the Town & Country uses J1850 VPW. I can connect to my 1997 F150 just fine, which uses J1850 PWM.
A cheap handheld OBD reader connects to my Town & Country without any issues.
I believe the Town & Country uses J1850 VPW. I can connect to my 1997 F150 just fine, which uses J1850 PWM.
A cheap handheld OBD reader connects to my Town & Country without any issues.
#52
CANtieCAR / Re: V4 getting hot after 5-6 m...
Last post by sparky001 - November 04, 2021, 07:11:07Hi,
Yes received. I'm having issues with current hosting provider for domain & Email. Have just swapped today. So hopefully can buy soon.
Thanks
Yes received. I'm having issues with current hosting provider for domain & Email. Have just swapped today. So hopefully can buy soon.
Thanks
#53
CANtieCAR / Re: V4 getting hot after 5-6 m...
Last post by Oleksandr - October 17, 2021, 19:44:40answered to you couple times... recheck spam-filters please.
#54
CANtieCAR / Re: V4 getting hot after 5-6 m...
Last post by sparky001 - October 03, 2021, 20:52:52Hello mate,
I hope you are well. I have sent E-Mail twice. everything OK??
Cheers
I hope you are well. I have sent E-Mail twice. everything OK??
Cheers
#55
CANtieCAR / CANtieCAR v4.5 Description
Last post by Oleksandr - May 07, 2021, 20:57:58CANtieCAR v4.5
Hardware
- Powerful ARM-core MCU
- Wi-Fi chipset ESP8266EX
- Bluetooth v2.0 + EDR
- True USB-ready device: CDC, FT232B/R-emulation, FT2232C-emulation, MSD over SD Card
- SD Card: internal Flash storage with USB-MSD up to 32GB
- 3 independent ISO9141/ISO14239 K-Lines (ISO-Lines): OBDII-pins 7,8,15
- 2 multi-functional lines (MFLs): CAN - one and two-wires, K Lines, J1850, DC-DC-out (5-30V)/1W etc.
- 3 CAN channels at the same time: Dual Wire CAN, Fault-tolerant CAN, Single wire CAN
- built-in analog switches multiplexer for OBDII-pins 1,2,3,6,8,13 and 8,9,10,11,12,14 with cross-link for the MFLs
- built-in hardware UART multiplexer
- built-in switchable CAN-bus differential terminator 120 Ohm
- 9 Leds: 6 - Bus Activity, 1 bi-color - USB/Bluetooth/Wi-Fi TX Activity + Status, 1 bi-color - Power state: USB and car + USB Activity, 1 bi-color - Bluetooth/Wi-Fi Status/Activity
- 2 DC-DC: 5V/500mA and programmable (5-35V)/1W
- 8 ADC Channels: Power ISO-Lines, Power MFL, High MFL, Low MFL, OBD:1, OBD:8, OBD:9, OBD:16
- Systems: Up to 35V
- Speed: ISO-Lines up to 1Mbit/s; CAN up to 1Mbit/s
- Special OBDII-connector design
- Security Firmware updates
- ALL protections with Resetable fuses
Emulated well-known adapters
- USB-Serial (4/5:GND, 6:CTS, 7:RXD, 8:DTR/DSR, 14:RTS, 15:TXD)
- USB-Serial Inverted (4/5:GND, 6:~CTS, 7:~RXD, 8:~DTR/~DSR, 14:~RTS, 15:~TXD)
- K-Line + USB-Serial LPG/CNG (4/5:GND, 12:RX/L, 13:TX/K, 7:K)
- KL-Line (7:K, 15:L)
- 2K-Line (7:K, 15:K2)
- KKL-Line (7:K, 15:L/K2)
- 3K-Line (7:K, 15:K2, 8:K3)
- OPEL 4K-Line (7:K, 8:K3, 3:K4, 12:K5)
- Multiplexed K-Line to ALL OBD-pins
- VAGCOM v409-1 (KKL-Design)
- RS485 Duplex (12:A, 13:B)
- RS485 Half-Duplex (12:A, 13:B)
- Carsoft BMW 6.5/7.3
- Carsoft MB 7.4
- Carsoft MB 7.4 - OBDII
- NISSAN Consult I + Sync (10:TX, 2:RX, 7:SYNC)
- NISSAN Consult I - OBDII (12:TX, 13:RX)
- DIESEL-kit v1.0
- DIESEL-kit v2.0
- P.A.Soft BMW Scanner v1.2.5
- P.A.Soft BMW Scanner v1.3.6
- P.A.Soft BMW Scanner v1.4.0 Demo
- P.A.Soft BMW Scanner v1.4.x
- BMW EDIABAS: STD:OBD
- BMW EDIABAS: ADS
- BMW EDIABAS: D-CAN Combo (STD:OBD K + D-CAN)
- BMW EDIABAS: D-CAN Fast (STD:OBD D-CAN)
- BMW EDIABAS: D-CAN Fxx (STD:OBD D-CAN for F-series)
- BMW EDIABAS: JBE PT-CAN (STD:OBD + JBE CAN 500k)
- BMW EDIABAS: JBE K-CAN (STD:OBD + JBE CAN 100k)
- BMW EDIABAS: FEM x-CAN 6/14 (STD:OBD + FEM CAN 500k)
- ELM323 v2.0+
- ELM327 v1.4+
- ELM327 v1.4+ (ScanTool.net)
- CMD EDC16 OBDII Flasher v1255 - K-Line
- CMD MPC5xx BDM Programmer v1255 (4/5:GND-6, 6:RST-1, 7:DI-7, 8:SCK-5, 14:IGN-2, 15:DO-8, 16:PWR-9)
- Galletto v1050/1080 EOBDII Flasher
- Galletto v1245 EOBDII Flasher
- Galletto v1250 EOBDII Flasher
- Galletto v1260 EOBDII Flasher
- VAG K+CAN Commander v1.4/v2.5/v3.6
- Lawicel CAN232 v3 (6:High, 14:Low)
- Lawicel CANUSB v1 (6:High, 14:Low)
- PonyProg2000 (4/5:GND-10, 6:IN#-6, 7:OUT#-5, 8:SCLK#-4, 14:VCC/RST-1/3, 15:RST#-2)
- EDiTH Eberspacher ISO Adapter
- OpenPort v1
- OpenPort v1.2
- OpenPort v1.3 Universal (11:Vpp/Boot)
- MultiECUScan
- PassThru SAE J2534-1/2
- PassThru SAE J2534-1/2 - BMW up to 2008
- PassThru SAE J2534-1/2 - NISSAN Consult-III plus
- ECU-Emulator
- USB-Bluetooth Gate - HC-06
- USB-WiFi Gate - ESP8266EX
- USB-WIRELESS Gate - SYSTEM.INI
Status
Discontinued (available from stock)
Support:
e-mail: support@tiecar.net
downloads: http://www.tiecar.net/support.html#CANtieCAR4

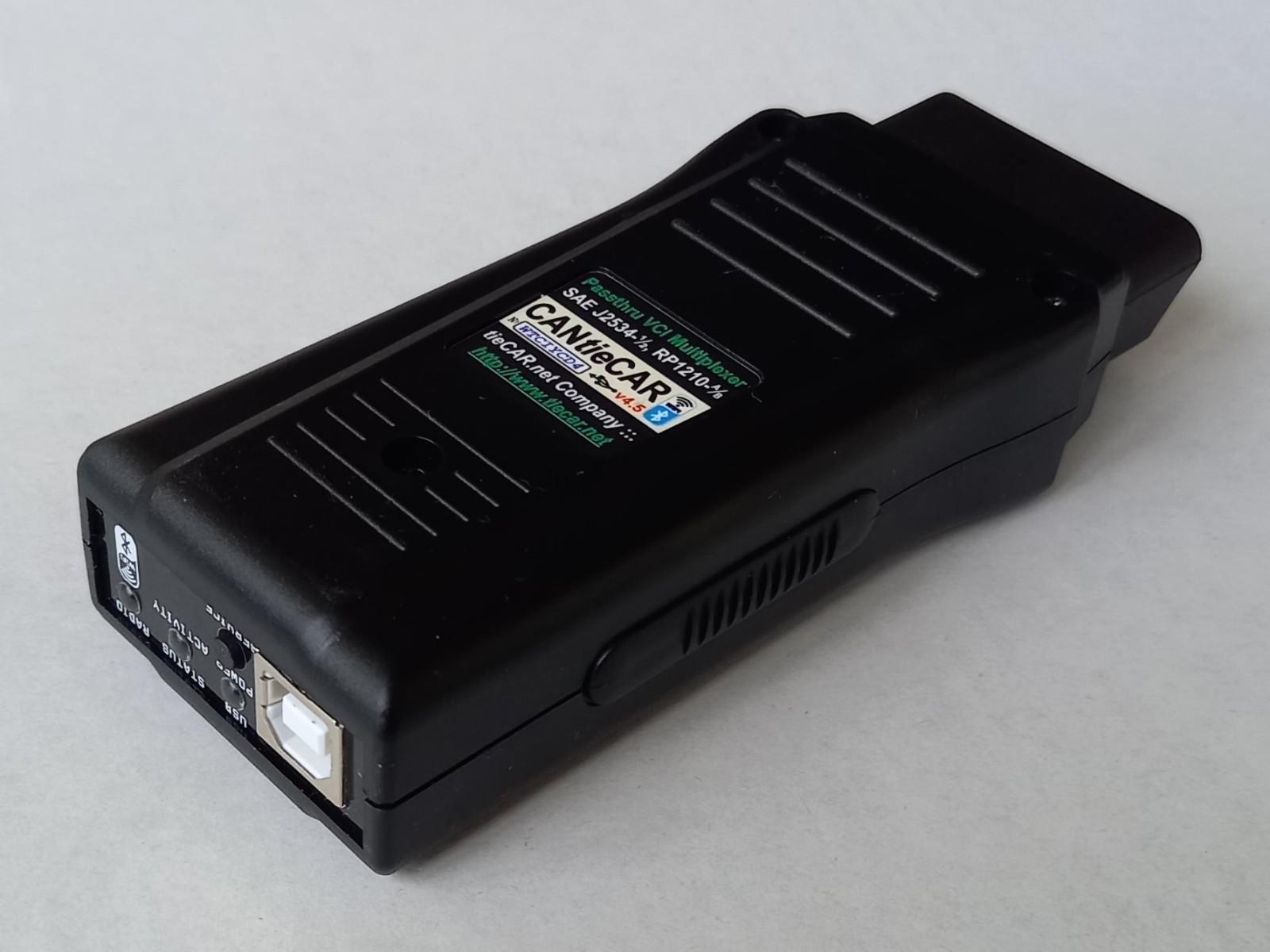

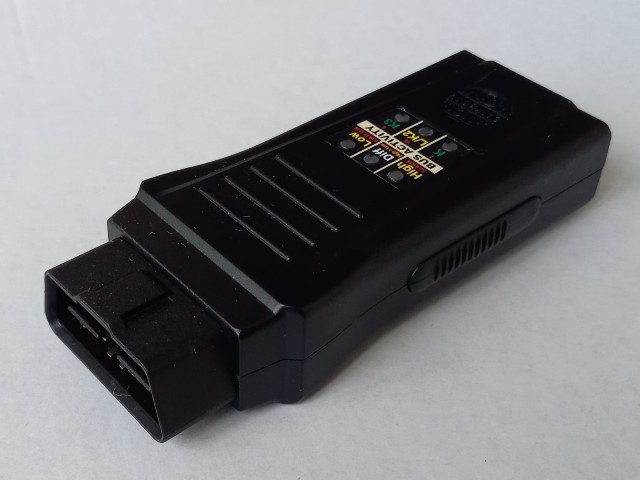

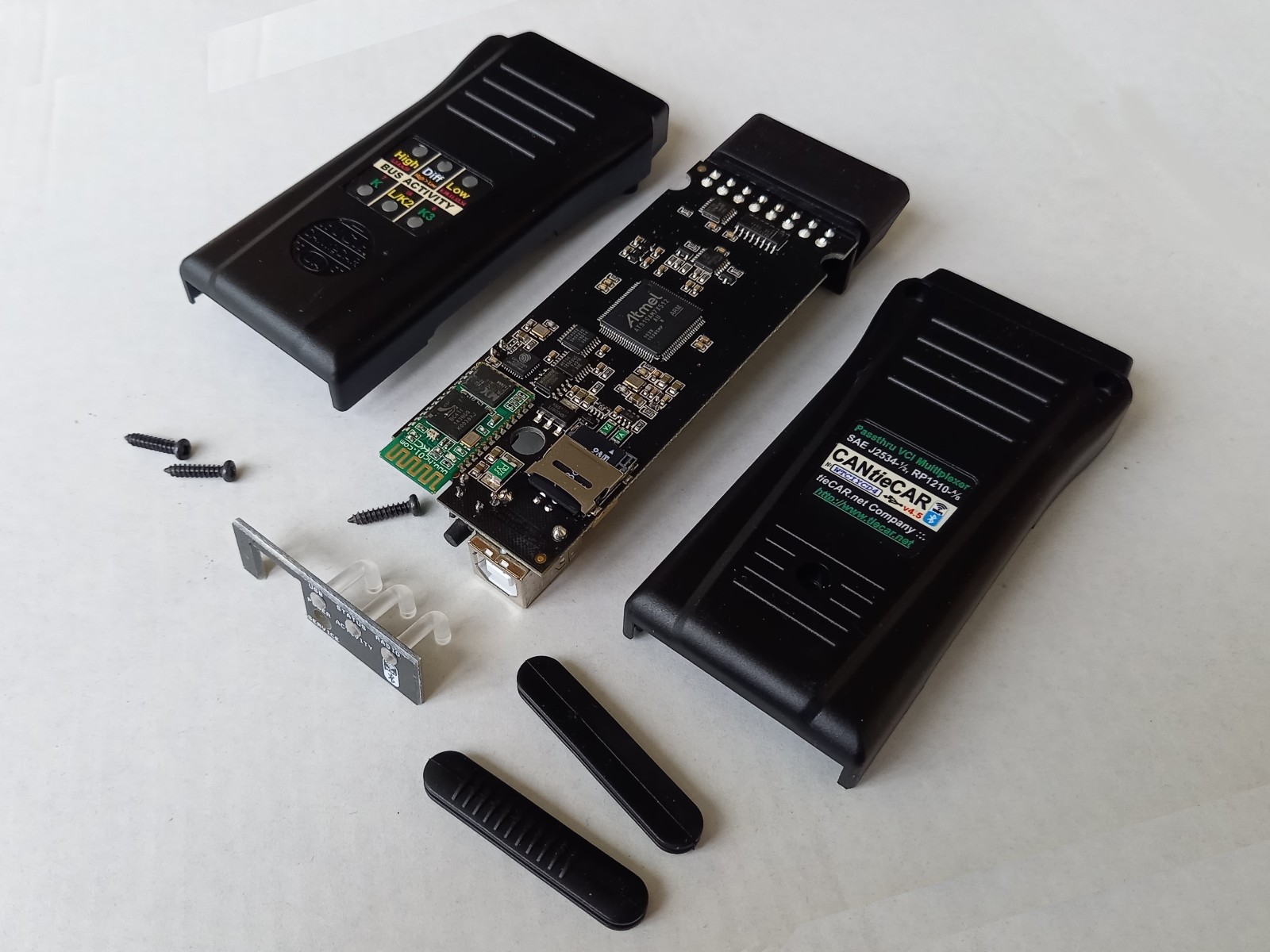

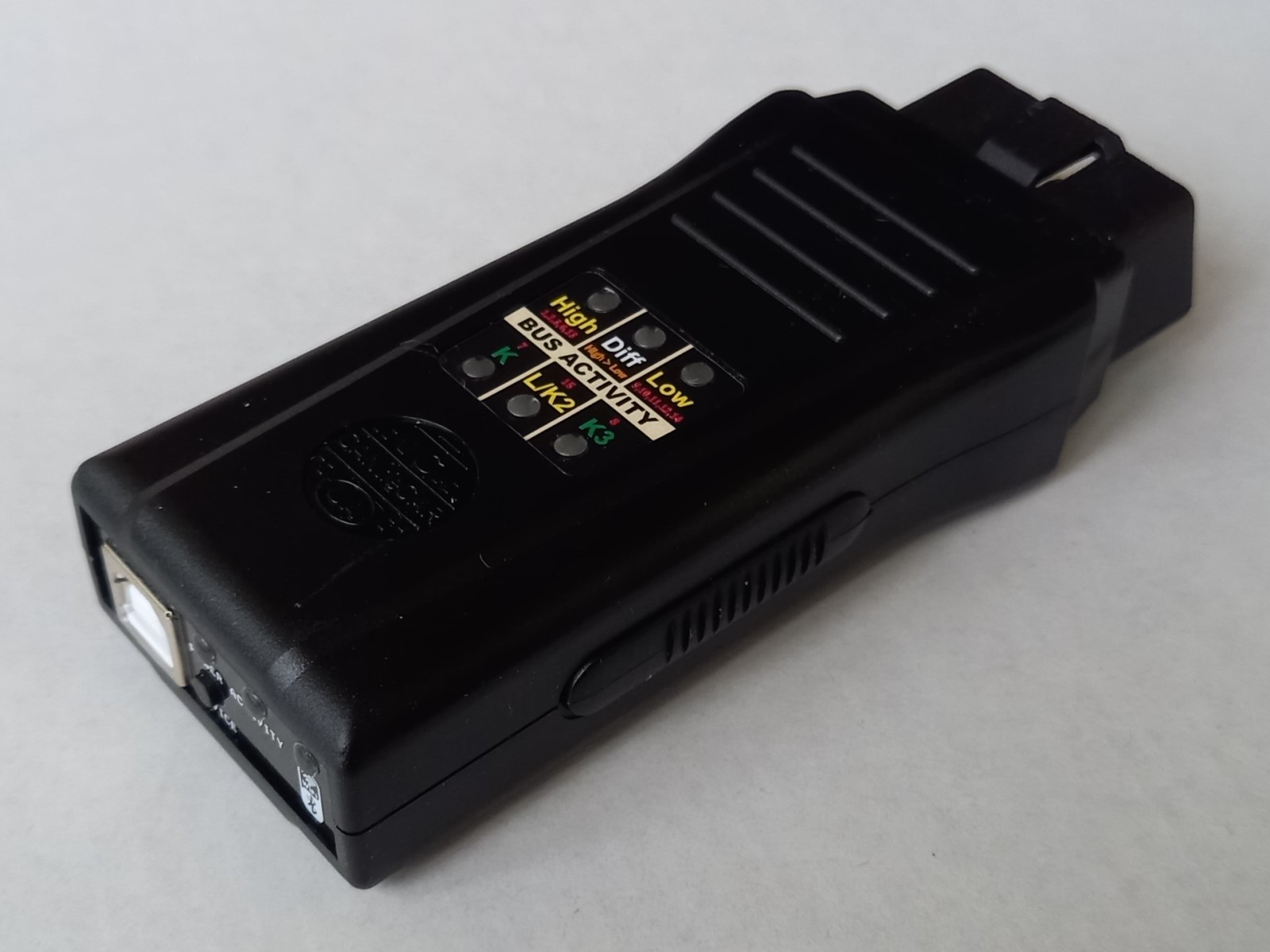

Pictures (v4.5):

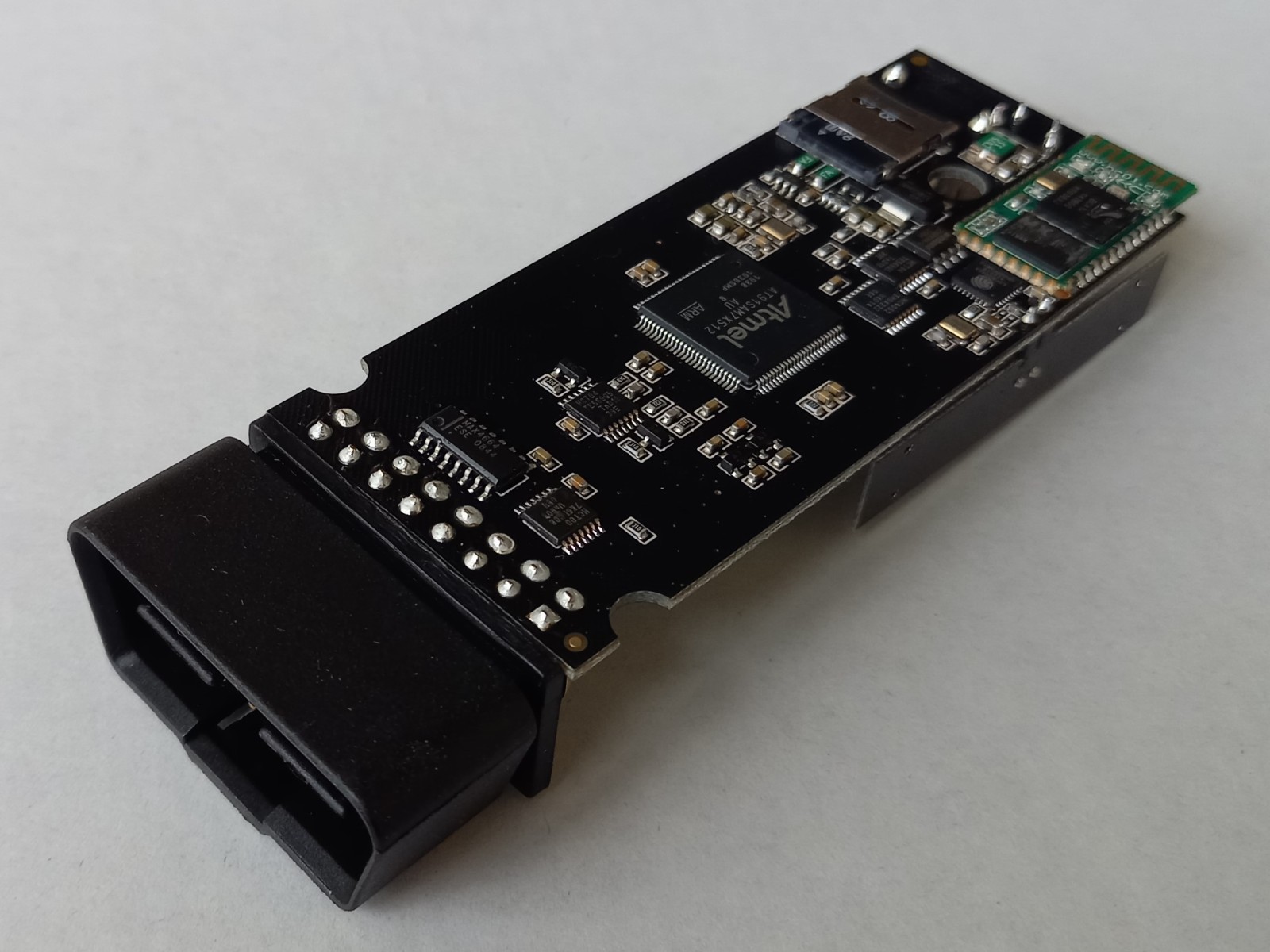

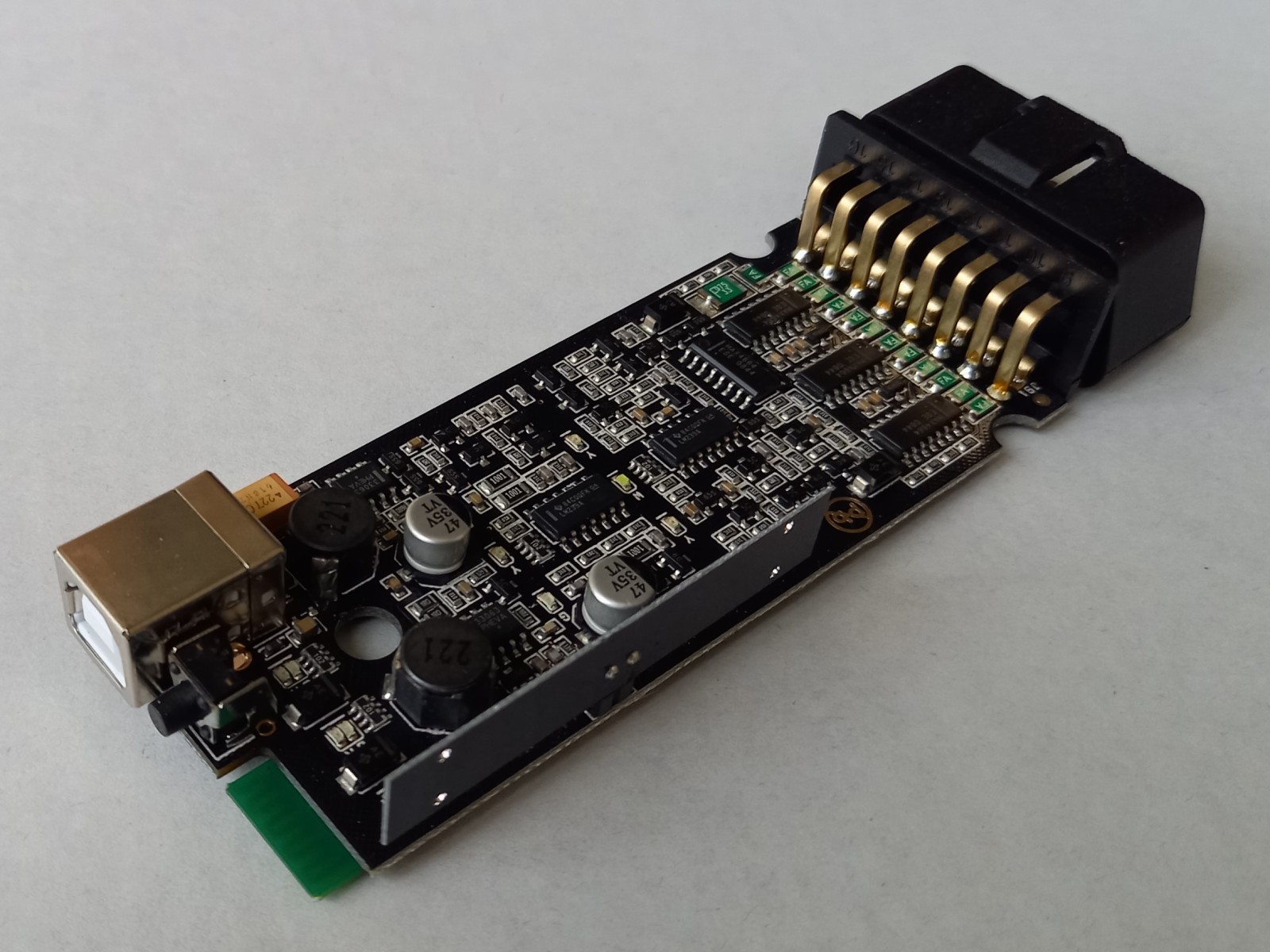

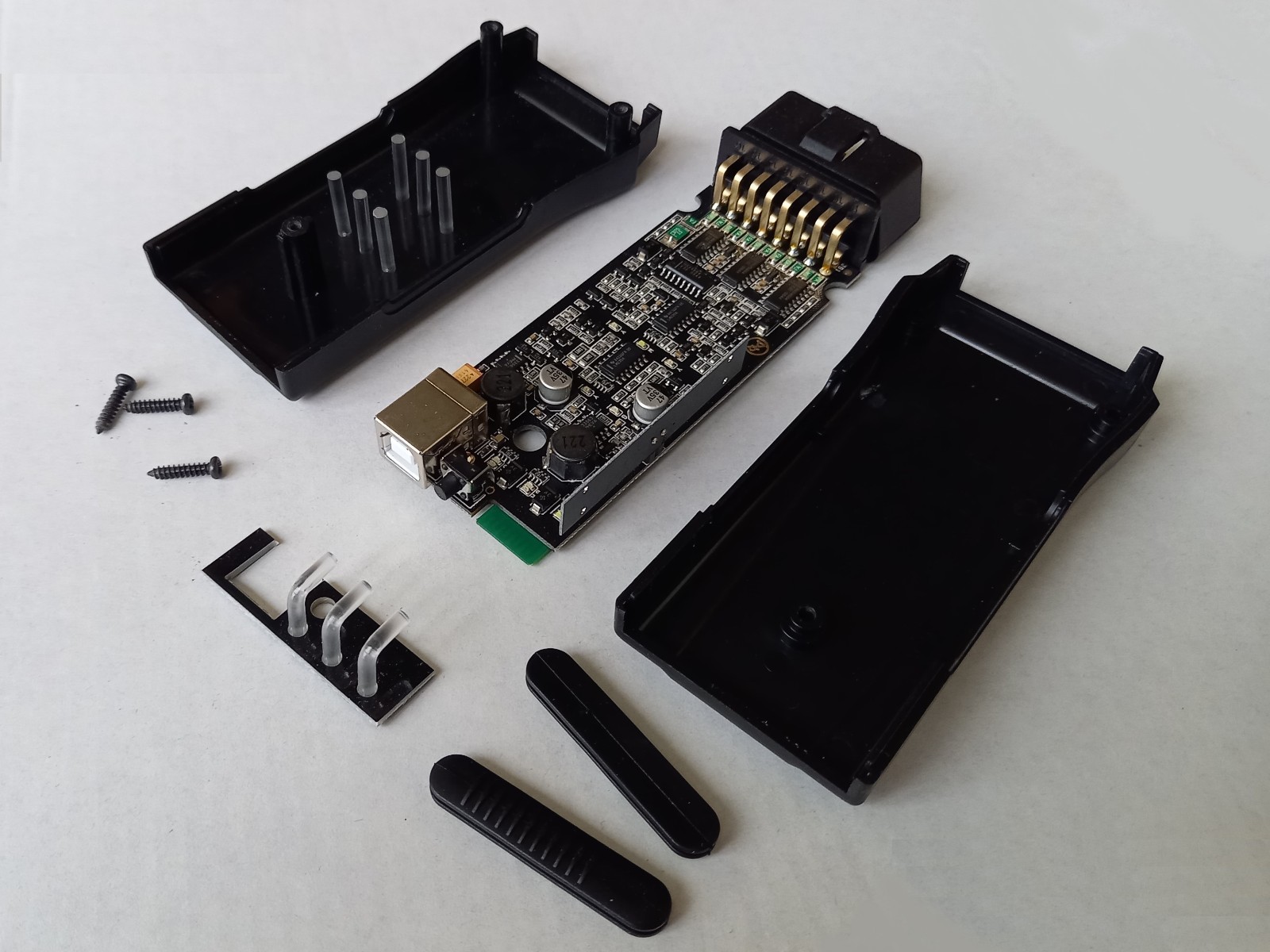

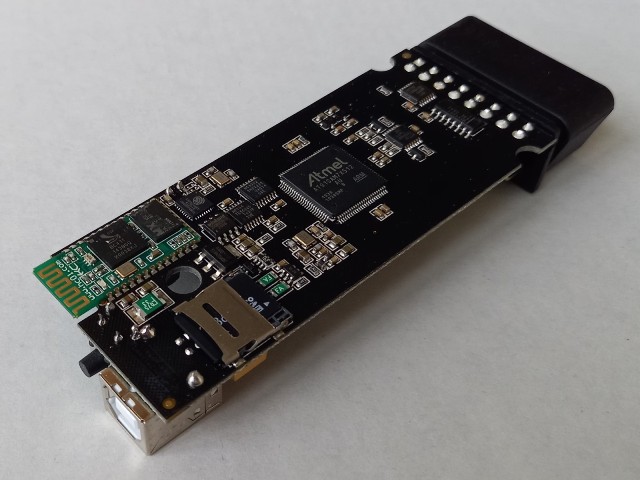

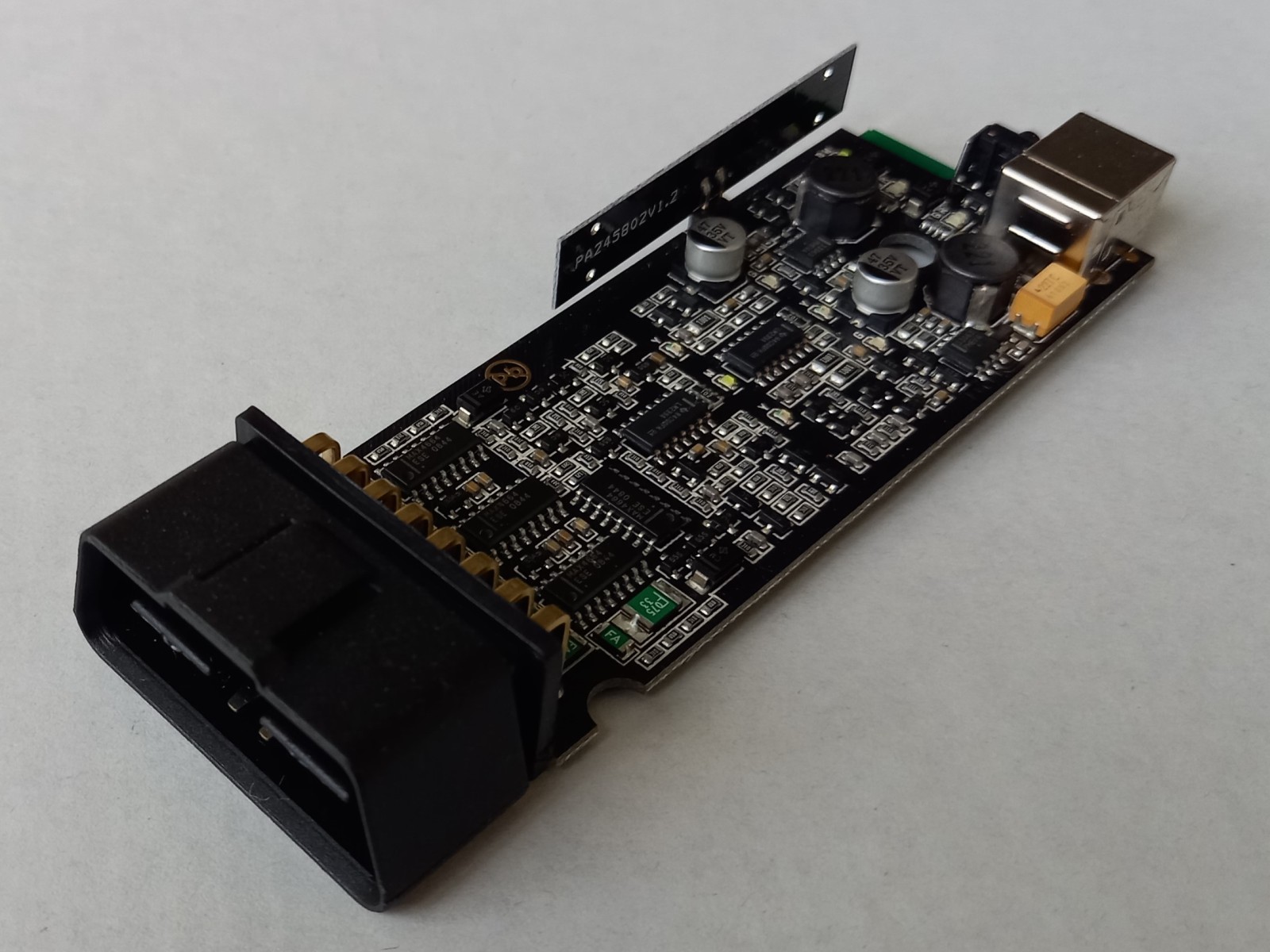

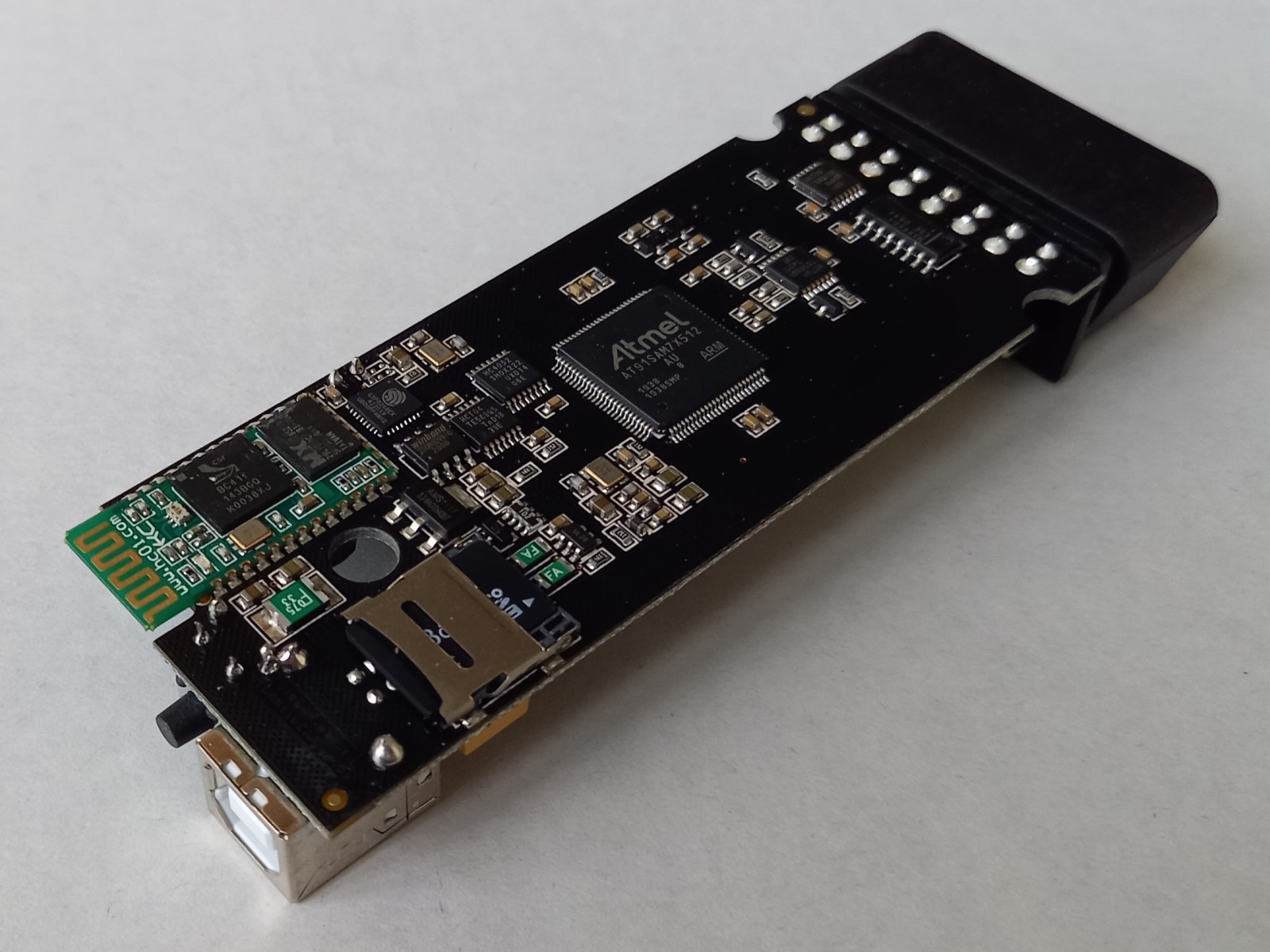

Inside (v4.5):
Hardware
- Powerful ARM-core MCU
- Wi-Fi chipset ESP8266EX
- Bluetooth v2.0 + EDR
- True USB-ready device: CDC, FT232B/R-emulation, FT2232C-emulation, MSD over SD Card
- SD Card: internal Flash storage with USB-MSD up to 32GB
- 3 independent ISO9141/ISO14239 K-Lines (ISO-Lines): OBDII-pins 7,8,15
- 2 multi-functional lines (MFLs): CAN - one and two-wires, K Lines, J1850, DC-DC-out (5-30V)/1W etc.
- 3 CAN channels at the same time: Dual Wire CAN, Fault-tolerant CAN, Single wire CAN
- built-in analog switches multiplexer for OBDII-pins 1,2,3,6,8,13 and 8,9,10,11,12,14 with cross-link for the MFLs
- built-in hardware UART multiplexer
- built-in switchable CAN-bus differential terminator 120 Ohm
- 9 Leds: 6 - Bus Activity, 1 bi-color - USB/Bluetooth/Wi-Fi TX Activity + Status, 1 bi-color - Power state: USB and car + USB Activity, 1 bi-color - Bluetooth/Wi-Fi Status/Activity
- 2 DC-DC: 5V/500mA and programmable (5-35V)/1W
- 8 ADC Channels: Power ISO-Lines, Power MFL, High MFL, Low MFL, OBD:1, OBD:8, OBD:9, OBD:16
- Systems: Up to 35V
- Speed: ISO-Lines up to 1Mbit/s; CAN up to 1Mbit/s
- Special OBDII-connector design
- Security Firmware updates
- ALL protections with Resetable fuses
Emulated well-known adapters
- USB-Serial (4/5:GND, 6:CTS, 7:RXD, 8:DTR/DSR, 14:RTS, 15:TXD)
- USB-Serial Inverted (4/5:GND, 6:~CTS, 7:~RXD, 8:~DTR/~DSR, 14:~RTS, 15:~TXD)
- K-Line + USB-Serial LPG/CNG (4/5:GND, 12:RX/L, 13:TX/K, 7:K)
- KL-Line (7:K, 15:L)
- 2K-Line (7:K, 15:K2)
- KKL-Line (7:K, 15:L/K2)
- 3K-Line (7:K, 15:K2, 8:K3)
- OPEL 4K-Line (7:K, 8:K3, 3:K4, 12:K5)
- Multiplexed K-Line to ALL OBD-pins
- VAGCOM v409-1 (KKL-Design)
- RS485 Duplex (12:A, 13:B)
- RS485 Half-Duplex (12:A, 13:B)
- Carsoft BMW 6.5/7.3
- Carsoft MB 7.4
- Carsoft MB 7.4 - OBDII
- NISSAN Consult I + Sync (10:TX, 2:RX, 7:SYNC)
- NISSAN Consult I - OBDII (12:TX, 13:RX)
- DIESEL-kit v1.0
- DIESEL-kit v2.0
- P.A.Soft BMW Scanner v1.2.5
- P.A.Soft BMW Scanner v1.3.6
- P.A.Soft BMW Scanner v1.4.0 Demo
- P.A.Soft BMW Scanner v1.4.x
- BMW EDIABAS: STD:OBD
- BMW EDIABAS: ADS
- BMW EDIABAS: D-CAN Combo (STD:OBD K + D-CAN)
- BMW EDIABAS: D-CAN Fast (STD:OBD D-CAN)
- BMW EDIABAS: D-CAN Fxx (STD:OBD D-CAN for F-series)
- BMW EDIABAS: JBE PT-CAN (STD:OBD + JBE CAN 500k)
- BMW EDIABAS: JBE K-CAN (STD:OBD + JBE CAN 100k)
- BMW EDIABAS: FEM x-CAN 6/14 (STD:OBD + FEM CAN 500k)
- ELM323 v2.0+
- ELM327 v1.4+
- ELM327 v1.4+ (ScanTool.net)
- CMD EDC16 OBDII Flasher v1255 - K-Line
- CMD MPC5xx BDM Programmer v1255 (4/5:GND-6, 6:RST-1, 7:DI-7, 8:SCK-5, 14:IGN-2, 15:DO-8, 16:PWR-9)
- Galletto v1050/1080 EOBDII Flasher
- Galletto v1245 EOBDII Flasher
- Galletto v1250 EOBDII Flasher
- Galletto v1260 EOBDII Flasher
- VAG K+CAN Commander v1.4/v2.5/v3.6
- Lawicel CAN232 v3 (6:High, 14:Low)
- Lawicel CANUSB v1 (6:High, 14:Low)
- PonyProg2000 (4/5:GND-10, 6:IN#-6, 7:OUT#-5, 8:SCLK#-4, 14:VCC/RST-1/3, 15:RST#-2)
- EDiTH Eberspacher ISO Adapter
- OpenPort v1
- OpenPort v1.2
- OpenPort v1.3 Universal (11:Vpp/Boot)
- MultiECUScan
- PassThru SAE J2534-1/2
- PassThru SAE J2534-1/2 - BMW up to 2008
- PassThru SAE J2534-1/2 - NISSAN Consult-III plus
- ECU-Emulator
- USB-Bluetooth Gate - HC-06
- USB-WiFi Gate - ESP8266EX
- USB-WIRELESS Gate - SYSTEM.INI
Status
Discontinued (available from stock)
Support:
e-mail: support@tiecar.net
downloads: http://www.tiecar.net/support.html#CANtieCAR4

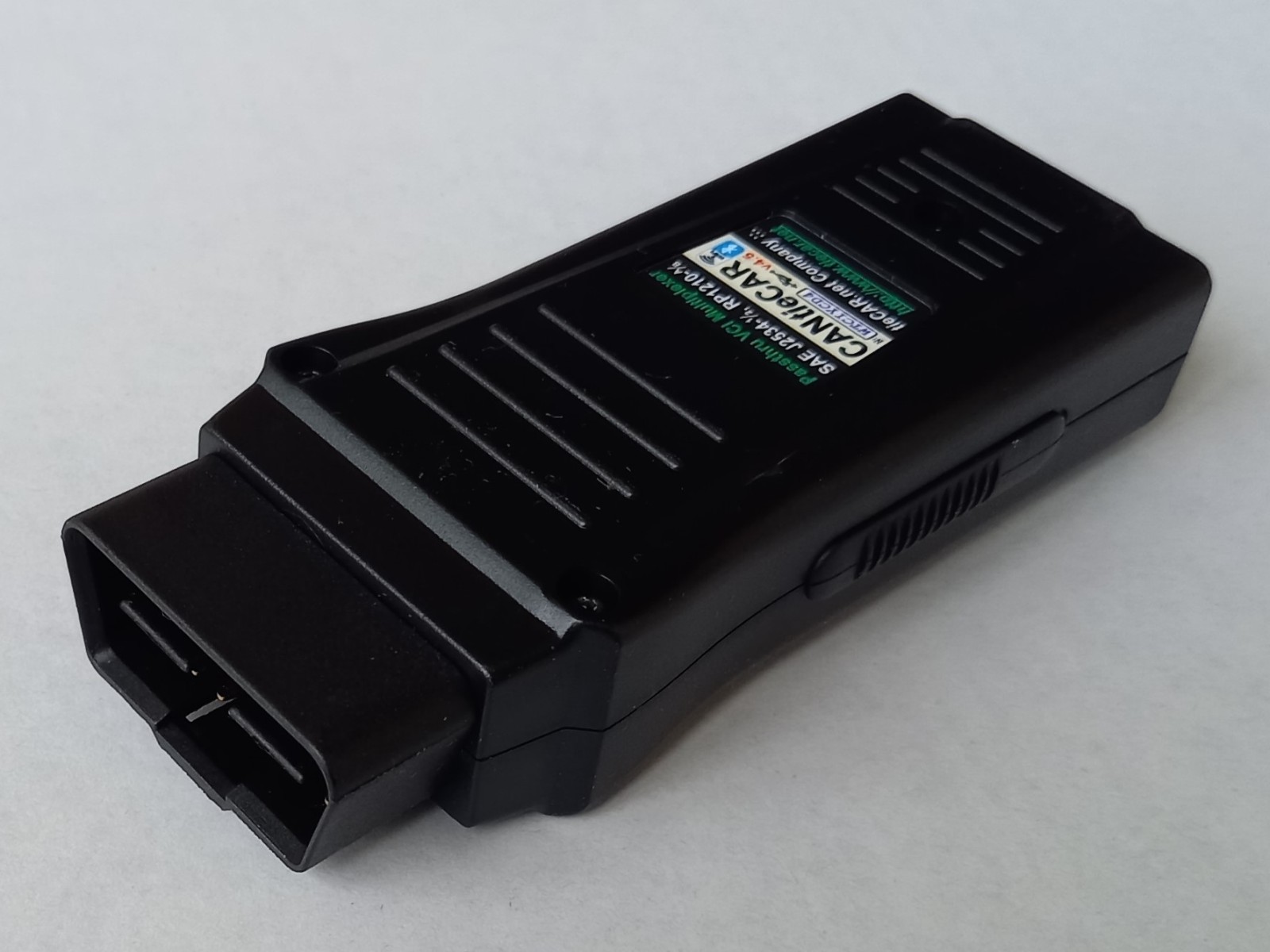

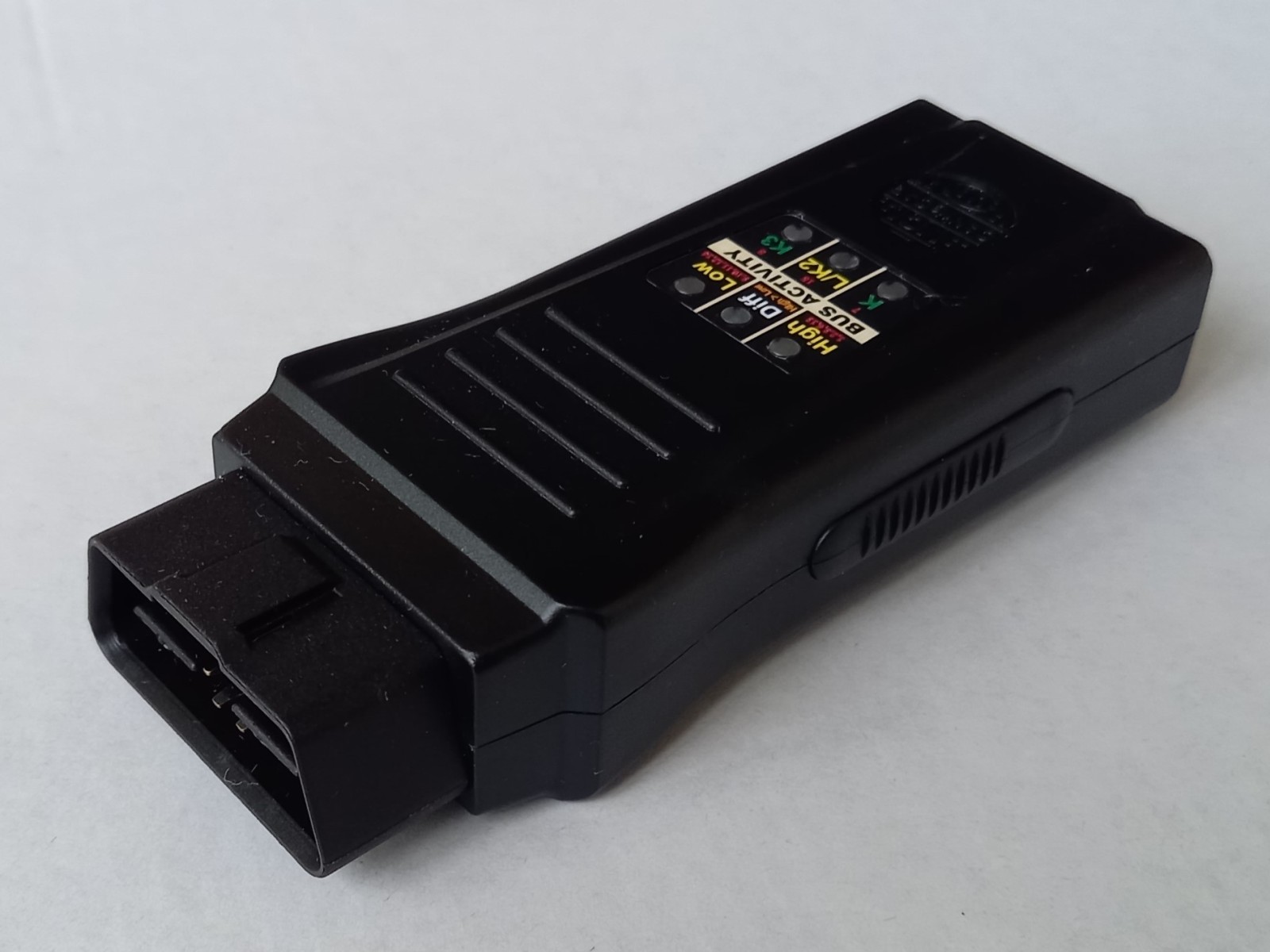

Pictures (v4.5):
Inside (v4.5):
#56
CANtieCAR / Re: Siemens MY99 Airbag - can'...
Last post by pupu14 - May 02, 2021, 16:42:06It states on their website (supported vehicles / modules) that this particular Siemens ECU (Siemens Airbag MY99 |INFO|DTC|PRM|ACT| KL A2 P3) is only accessed by "KL - KKL/VagCom/OBDKey interface".
Try changing the mode of Cantiecar dongle to KKL or Vagcom and try it again (don't forget to change adapter setting inside Multiecuscan).
Try changing the mode of Cantiecar dongle to KKL or Vagcom and try it again (don't forget to change adapter setting inside Multiecuscan).
#57
CANtieCAR / Re: Siemens MY99 Airbag - can'...
Last post by Oleksandr - May 01, 2021, 12:57:40perhaps you have to ask them... looks like a software problem...
#58
CANtieCAR / Siemens MY99 Airbag - can't co...
Last post by demon333 - April 27, 2021, 13:51:44Hi,
I bought the multiplexed package for use with my 2004 Fiat Stilo Abarth 2.4l 20v (selespeed).
Loving the package - not having to swap cables etc is really nice!
I can connect to all ECUs except the Airbag one. Connection just times out with "can't connect, make sure blah blah" message.
I have updated the (cantiecar) firmware, and when doing a scan now, the "Siemens MY99" *is* found, but multiecuscan still won't connect to it.
Unfortunately, it is the airbags that I have a problem with, and got this kit, primarily, to sort it out!
Does anyone have any tips/ideas?
I bought the multiplexed package for use with my 2004 Fiat Stilo Abarth 2.4l 20v (selespeed).
Loving the package - not having to swap cables etc is really nice!
I can connect to all ECUs except the Airbag one. Connection just times out with "can't connect, make sure blah blah" message.
I have updated the (cantiecar) firmware, and when doing a scan now, the "Siemens MY99" *is* found, but multiecuscan still won't connect to it.
Unfortunately, it is the airbags that I have a problem with, and got this kit, primarily, to sort it out!
Does anyone have any tips/ideas?
#59
CANtieCAR / Re: Обновления
Last post by mestnyi - February 20, 2021, 14:36:35с обновкой "CANtieCAR4_RC_BW04020530_FW04020344" снова вирнулись CMD EDC16 и CMD MPC5xx, это радует, спасибо!
#60
CANtieCAR / Re: V4 getting hot after 5-6 m...
Last post by Oleksandr - February 17, 2021, 15:05:10Quote from: sparky001 on February 13, 2021, 22:38:48
Yeah maybe,
Does new one support Ford/Mazda IDS???
i do not sure... did not tested recently
Quote from: sparky001 on February 13, 2021, 22:38:48
How much for new VIP??
write on sales e-mail - can@tiecar.net
